Control Rod Components (AWD Models)

Refer to COMPONENTS .

Refer to the figure below for control rod removal and installation procedure.

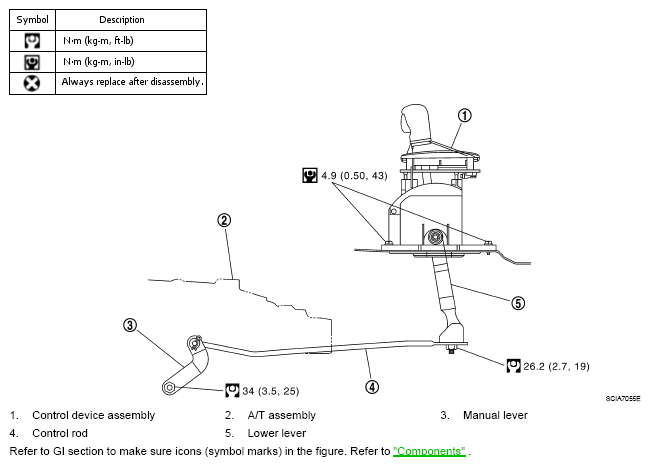

Fig 1: Control Rod Replacement Components (AWD Models) With Torque Specifications
G05213343
