Home › Infiniti › 2007 › M35 Base › Repair and Diagnosis › Transmission › Transfer Case › Transfer Assembly › Disassembly and Assembly › Components

Disassembly and Assembly: Components

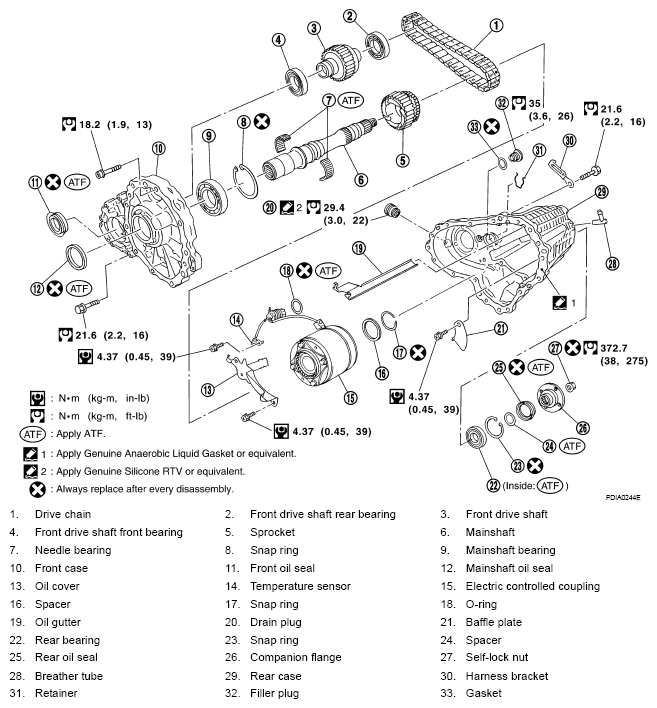

Fig 1: Exploded View Of Transfer Assembly Components With Torque Specifications
G05211298
