Rear Console: Notes

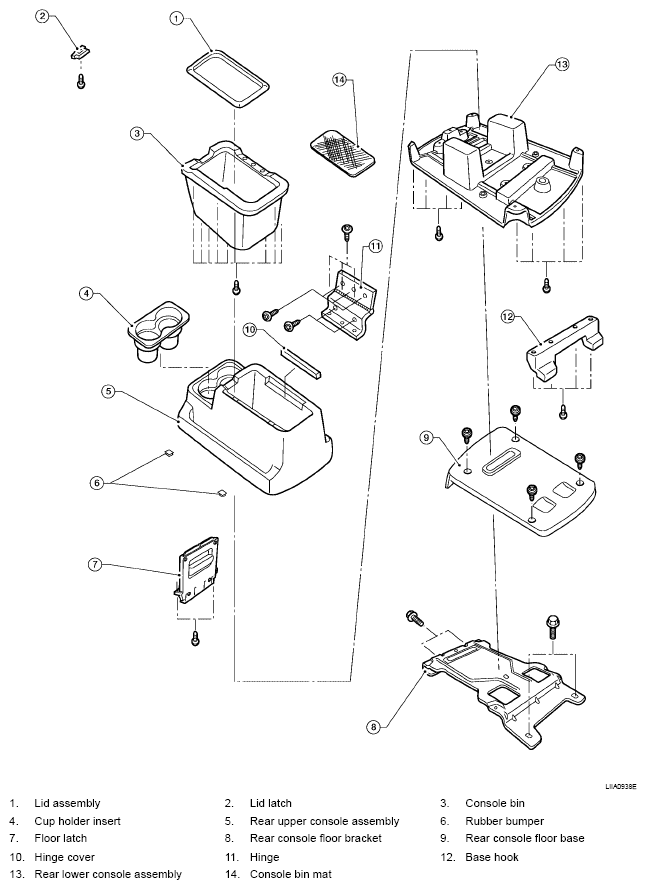

Fig 1: Exploded View Of Rear Console
G05235617Courtesy of NISSAN MOTOR CO., U.S.A.
