Removal and Installation: Notes

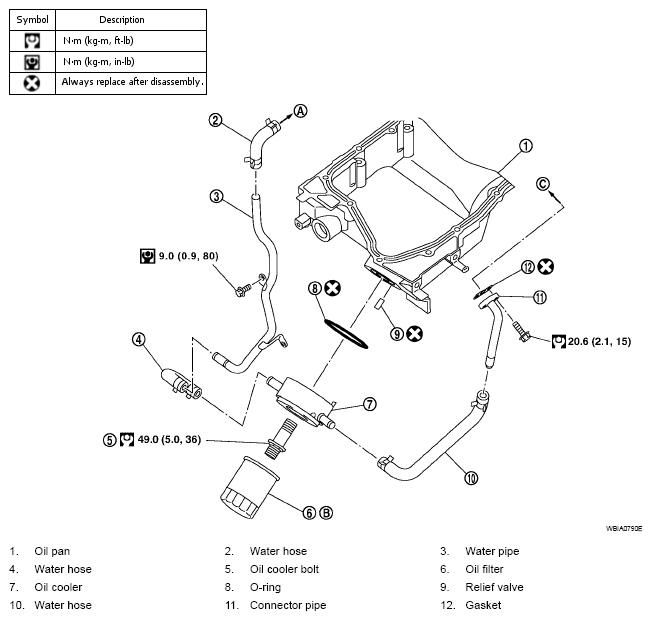

Fig 1: Oil Cooler Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Be careful not to burn yourself, as the engine oil and engine coolant are hot.
