DTC P1564 ASCD Steering Switch: Wiring Diagram

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

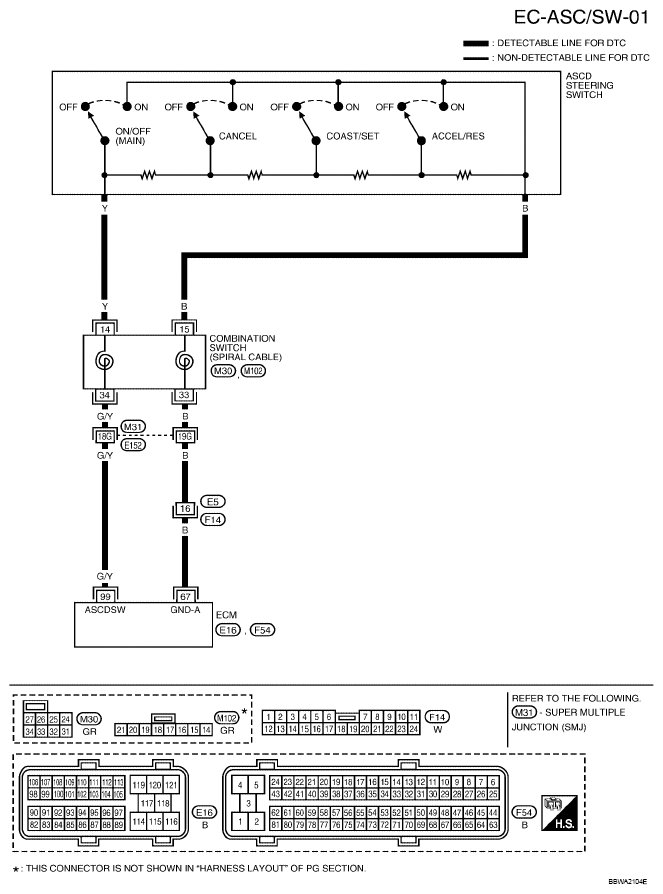

Fig 1: EC-ASC/SW-01 - Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

INPUT/OUTPUT VOLTAGE REFERENCE

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
67	B	Sensor ground	[Engine is running] Warm-up condition Idle speed	Approximately 0V
99	G/Y	ASCD steering switch	[Ignition switch: ON] ASCD steering switch: OFF	Approximately 4V
			[Ignition switch: ON] MAIN switch: ON	Approximately 0V
			[Ignition switch: ON] CANCEL switch: ON	Approximately 1V
			[Ignition switch: ON] RESUME/ACCELERATE switch: ON	Approximately 3V
			[Ignition switch: ON] SET/COAST switch: ON	Approximately 2V
