Engine Control System - Introduction
›
Evaporative Emission System
›
Removal and Installation
›
EVAP Canister
EVAP Canister
Tighten EVAP canister as shown in the figure.

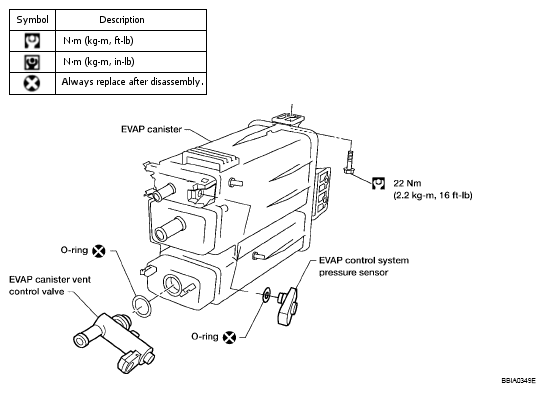

Fig 1: Identifying EVAP Canister Components
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
