Removal and Installation: Notes

For SRS, go to SUPPLEMENTAL RESTRAINT SYSTEM .

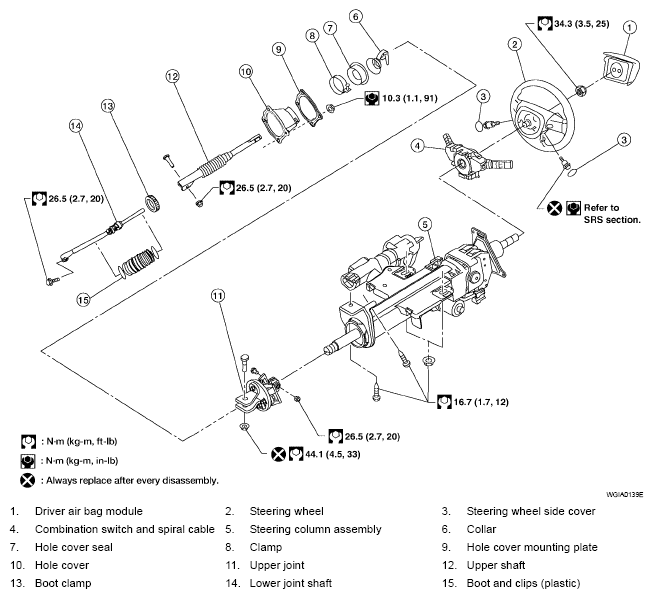

Fig 1: Steering Column Replacement Components With Torque Specifications
G05230574
CAUTION:
  • Do not exert any load or impact in the axial direction immediately before or after column removal.
  • Do not to move steering gear during removal of steering column assembly.
