Removal and Installation

Refer to the following illustration for hydraulic line removal.

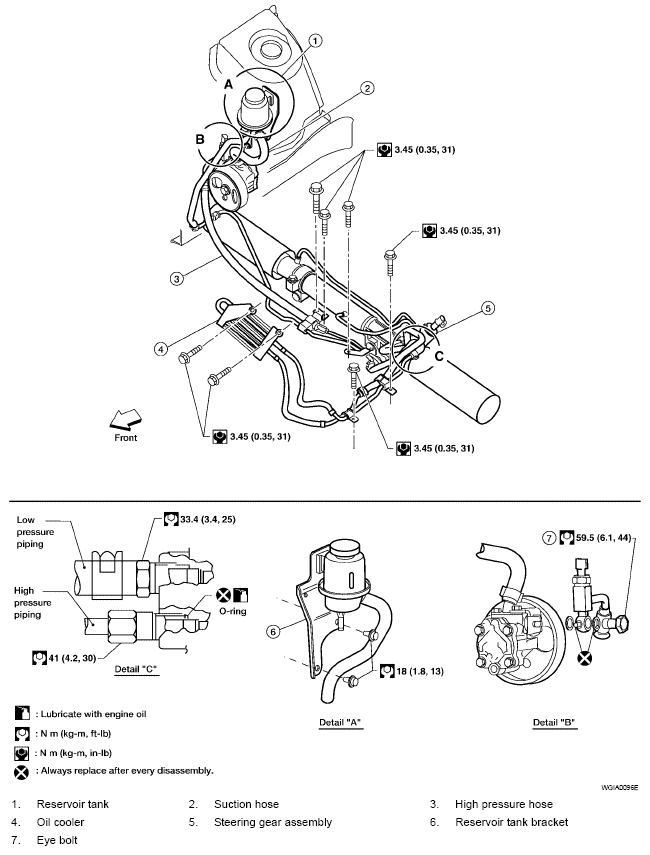

Fig 1: Hydraulic Line With Torque Specifications

Installation is in the reverse order of removal.

• Confirm mating marks are aligned with hose and clamp, then correct if needed.
  Fig 2: Aligning Mating Marks With Hose And Clamp


• To install eye joint, align projection of eye joint with notch of power steering pump, and attach eye joint to power steering pump properly. Tighten eye bolt by hand fully, then torque to specification.
  Fig 3: Aligning Projection Of Eye Joint With Notch Of Power Steering Pump
