Home › Infiniti › 2007 › QX56 AWD › Repair and Diagnosis › Steering › Power Steering System › Power Steering Oil Pump › Disassembly and Assembly › Notes

Disassembly and Assembly: Notes

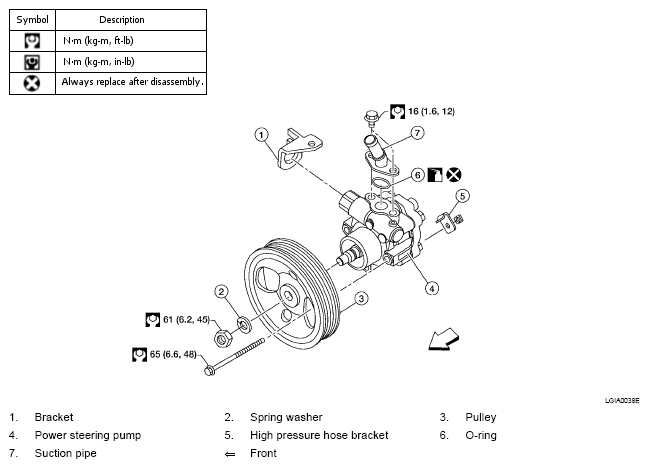

Fig 1: Power Steering Oil Pump Replacement Components With Torque Specifications
G05230600
