Front Suspension Assembly: Components

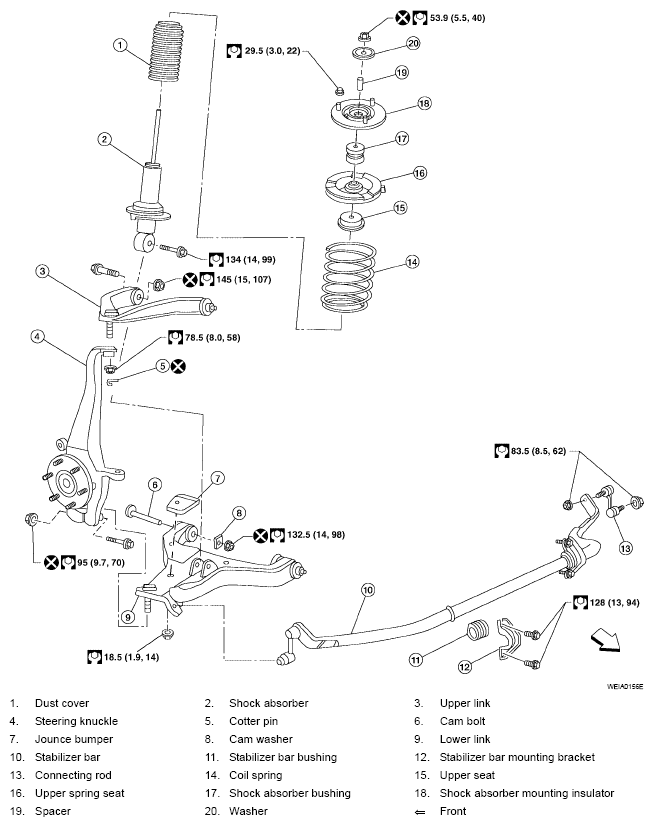

Fig 1: Identifying Front Suspension Assembly Components
G05230328
