Oil Channel

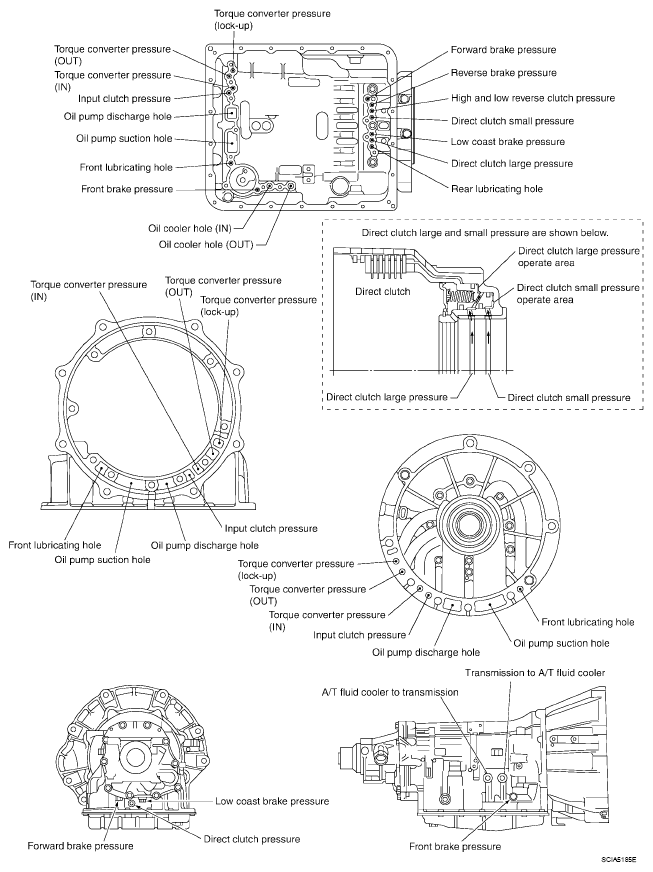

Fig 1: Identifying Oil Channel - 2WD Models
G05229569
Fig 2: Identifying Oil Channel - 4WD Models
G04901173
