Disassembly and Assembly: Components

For GI, go to GENERAL INFORMATION .

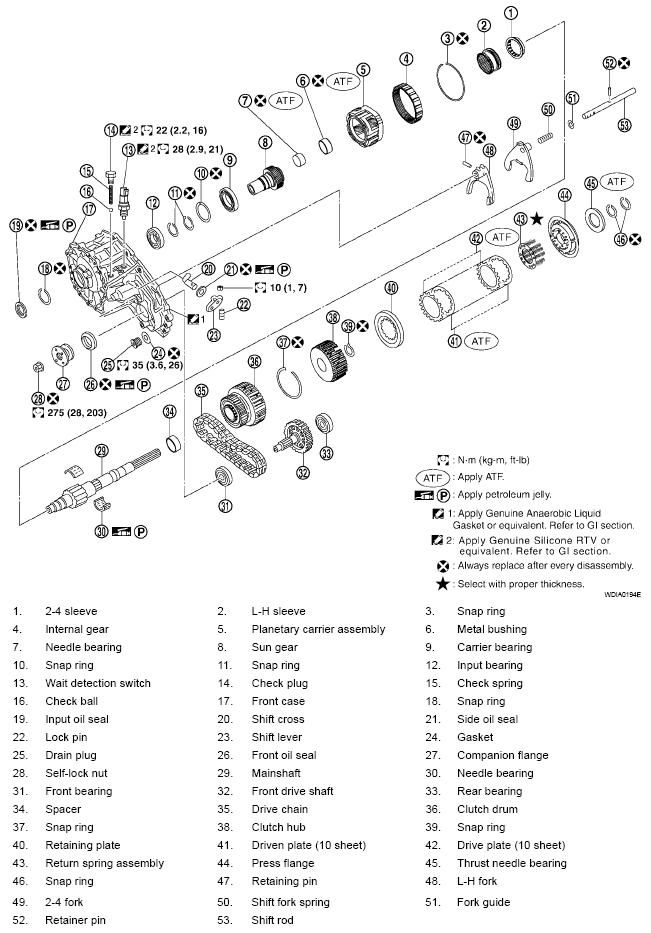

Fig 1: Transfer Assemble Replacement Components With Torque Specifications (1 Of 2)
G05230014

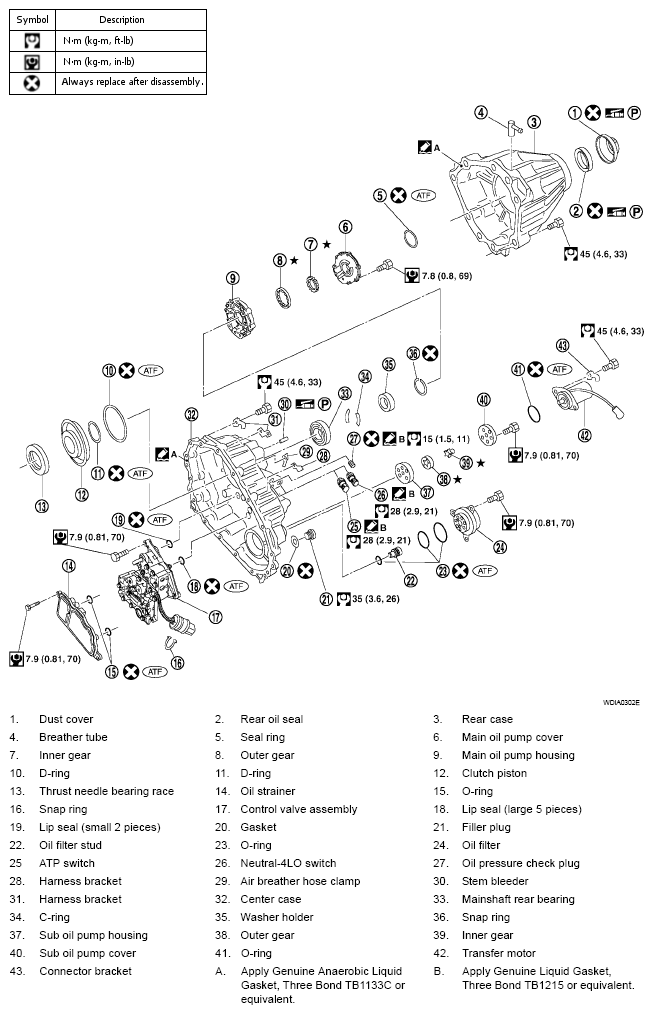

Fig 2: Transfer Assemble Replacement Components With Torque Specifications (2 Of 2)
G05230015
