Cross-Sectional View (4WD models)

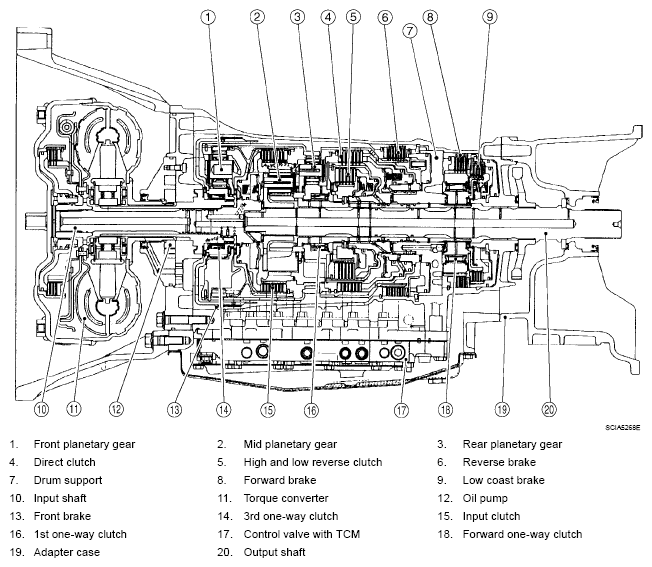

Fig 1: Cross-Sectional View Of A/T Control System (4WD Models)
G05229289
