Removal and Installation

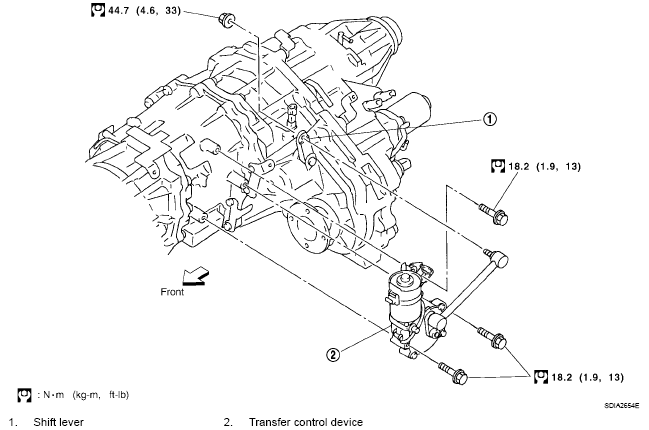

Fig 1: Transfer Control Device Replacement Components With Torque Specifications

CAUTION:

• Change vehicle state to 2WD, and then remove and install transfer control device.
• Check 4WD shift indicator after installation. Refer to "PRECAUTIONS FOR TRANSFER ASSEMBLY AND TRANSFER CONTROL UNIT REPLACEMENT ".
