Front Regulator
›
Exploded View
Exploded View

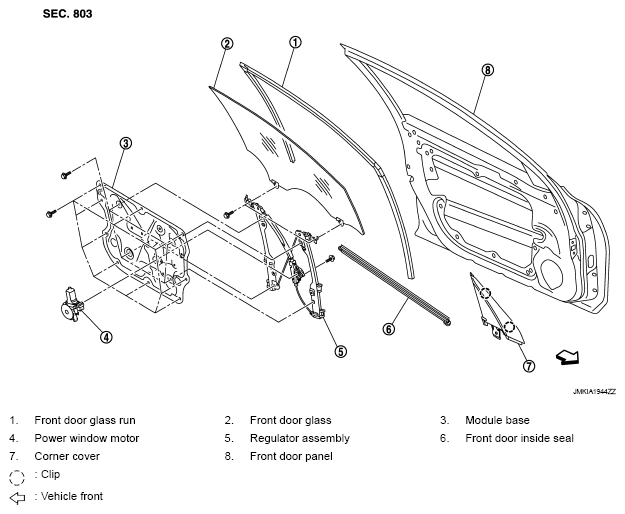

Fig 1: Exploded View Of Front Regulator Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
