Wiring Diagram - POWER WINDOW SYSTEM

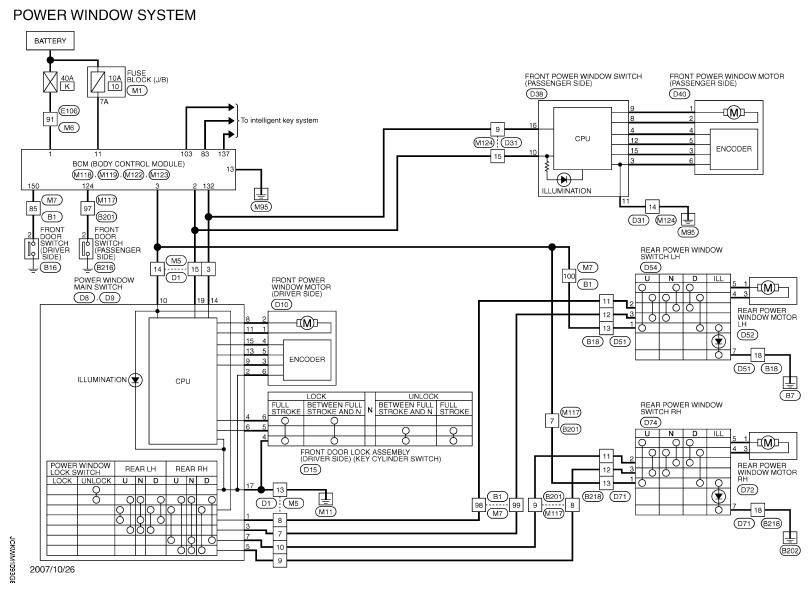

Fig 1: Identifying Power Window System - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

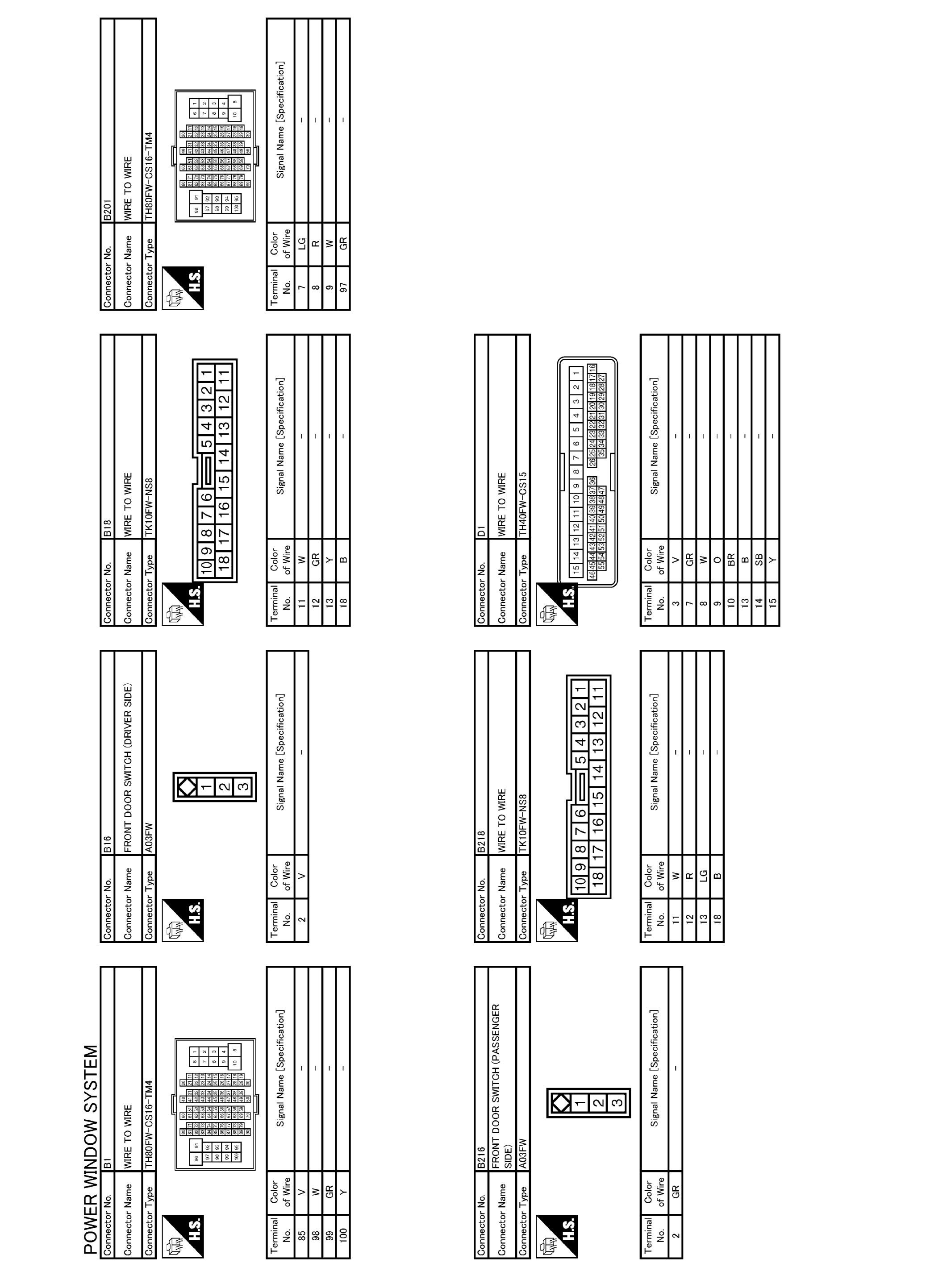

Fig 2: Identifying Power Window System Connector Terminal (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

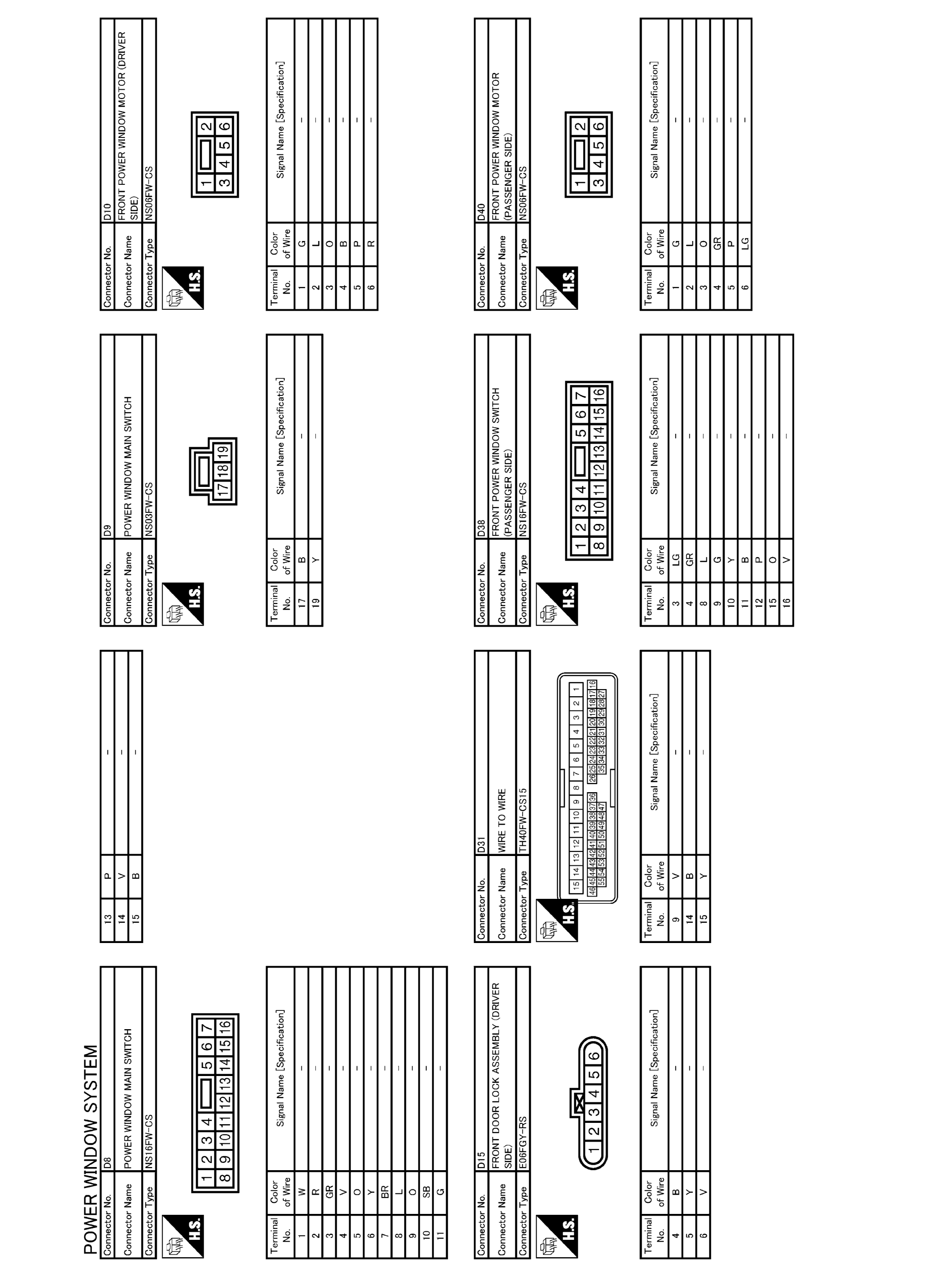

Fig 3: Identifying Power Window System Connector Terminal (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

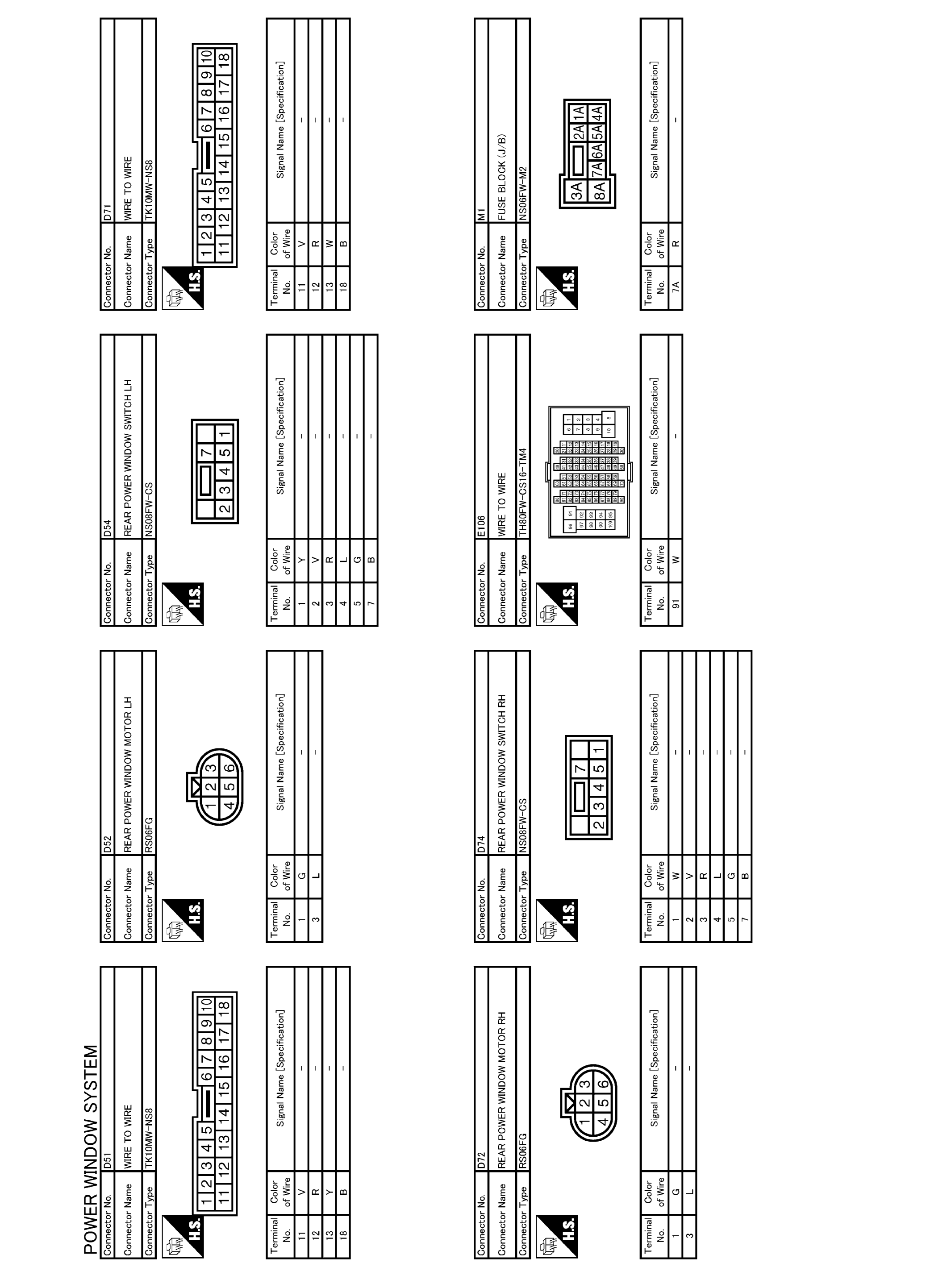

Fig 4: Identifying Power Window System Connector Terminal (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Power Window System Connector Terminal (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Power Window System Connector Terminal (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
