Component Parts Location
Component Parts Location

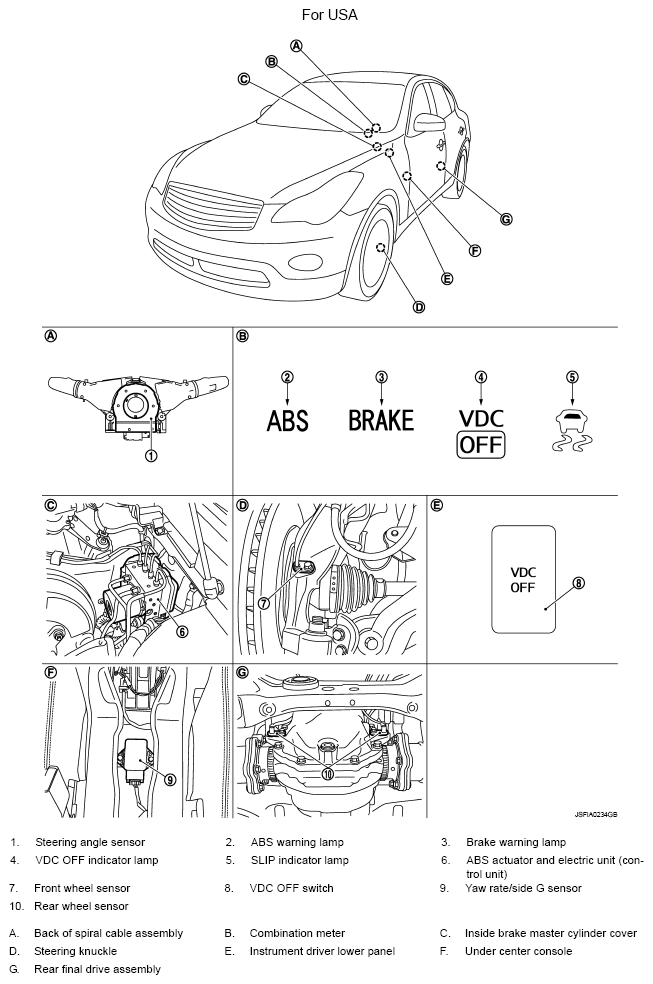

Fig 1: Identifying Anti-Lock Braking System Components Location (For USA)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Anti-Lock Braking System Components Location (Except For USA)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
