Exploded View: Removal

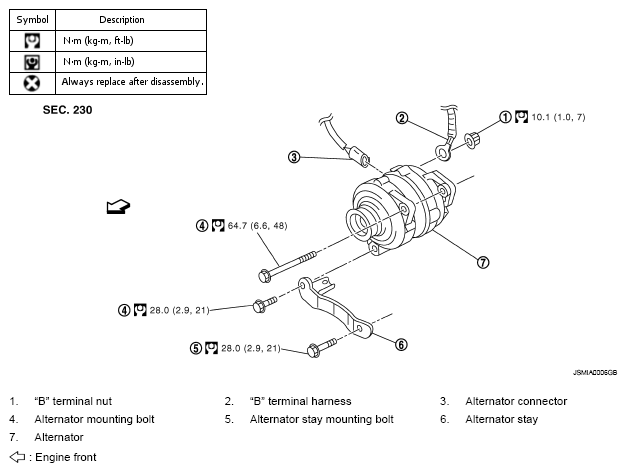

Fig 1: Exploded View Of Alternator Replacement Components With Torque Specifications - AWD

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbols in the figure.
