Center Console Assembly
›
Exploded View
Exploded View

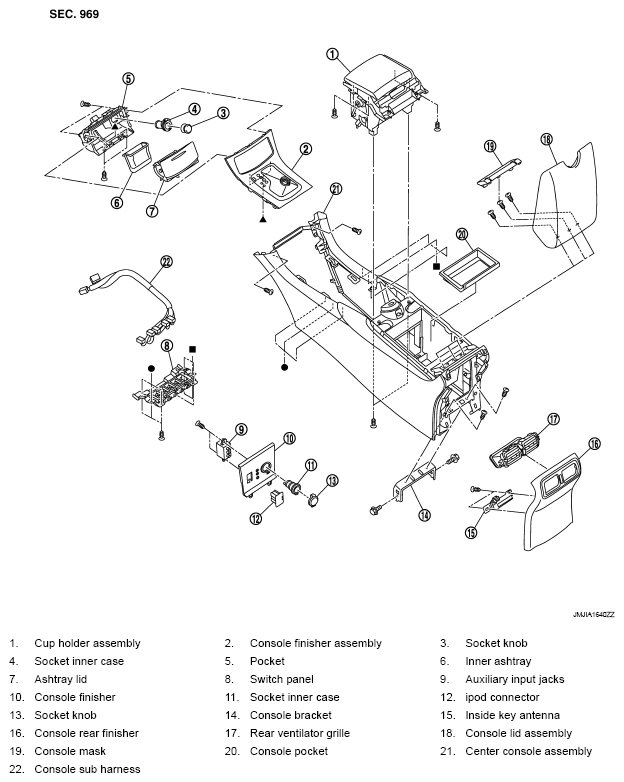

Fig 1: Identifying Center Console Assembly Replacement Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
