Exploded View: Disassembly

Type: S114-927

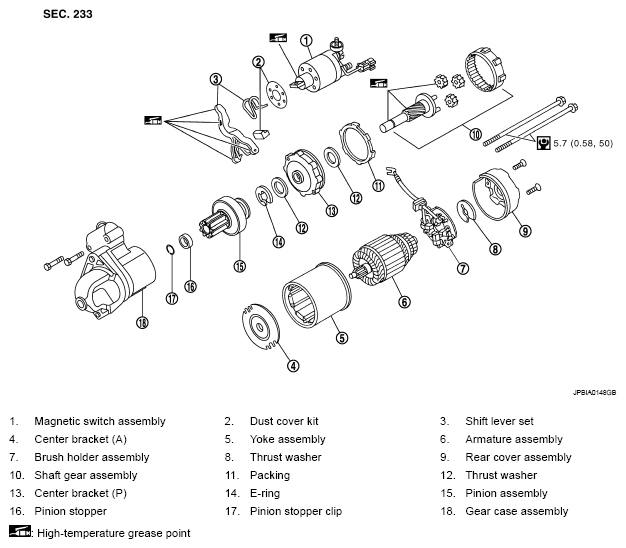

Fig 1: Exploded View Of Starter Motor With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbols not described on the above.
