Exploded View

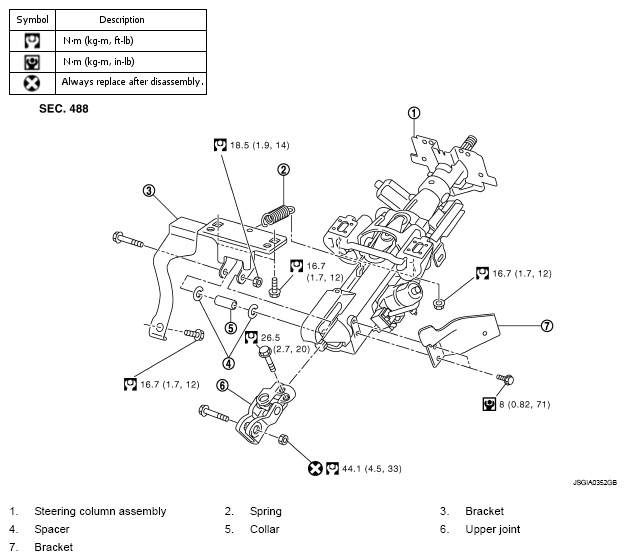

Fig 1: Exploded View Of Steering Column (With Electric Motor) Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbols in the figure.
