Transmission
›
Automatic Transmission
›
Disassembly And Assembly
›
Transmission Assembly
›
Exploded View
Exploded View

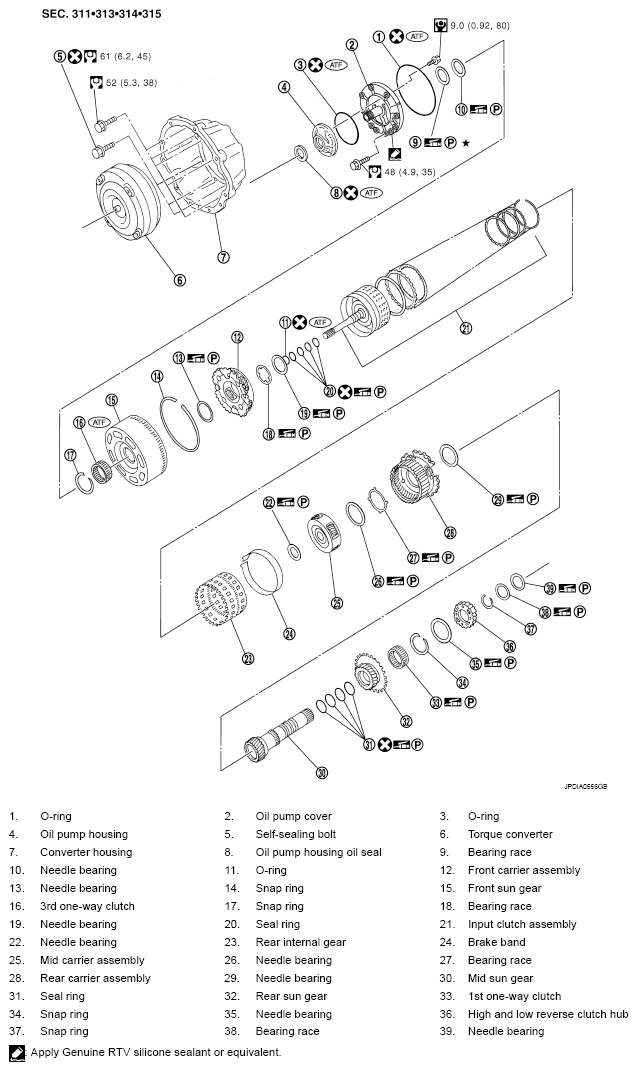

Fig 1: Exploded View Of Transmission Assembly With Torque Specifications (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

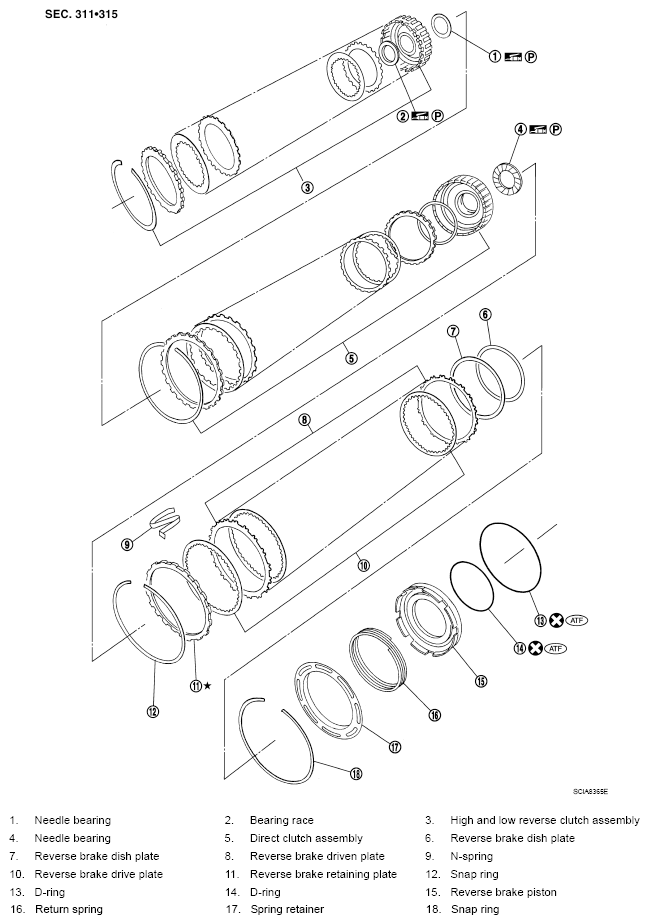

Fig 2: Exploded View Of Transmission Assembly (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

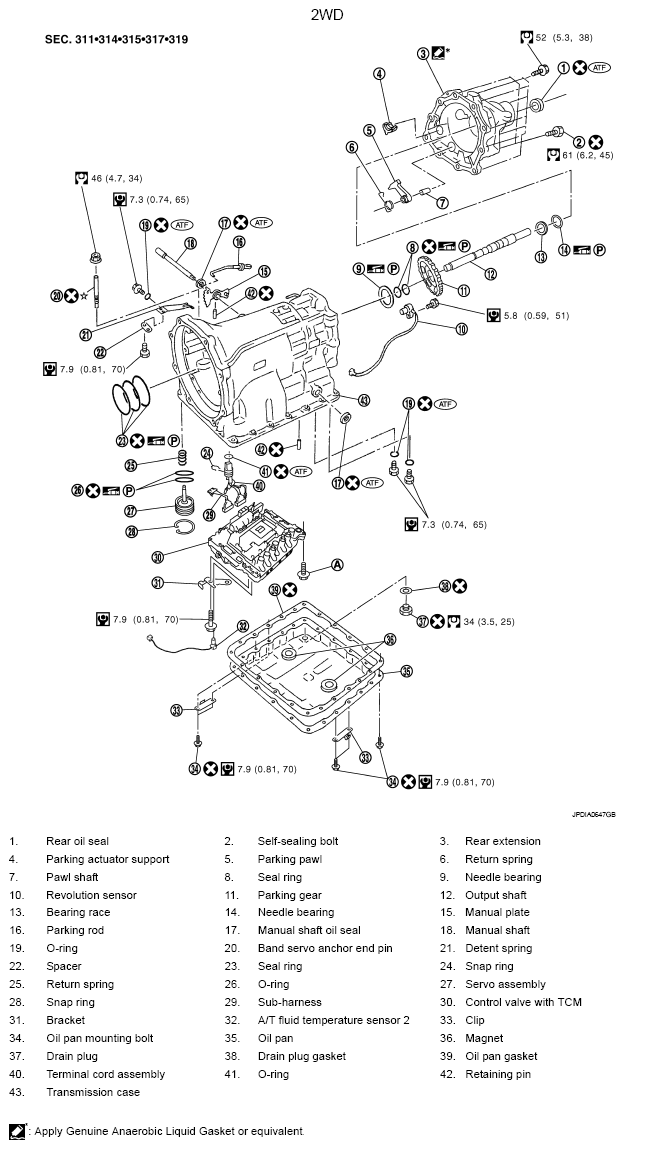

Fig 3: Exploded View Of Transmission Assembly With Torque Specifications - 2WD
Courtesy of NISSAN MOTOR CO., U.S.A.

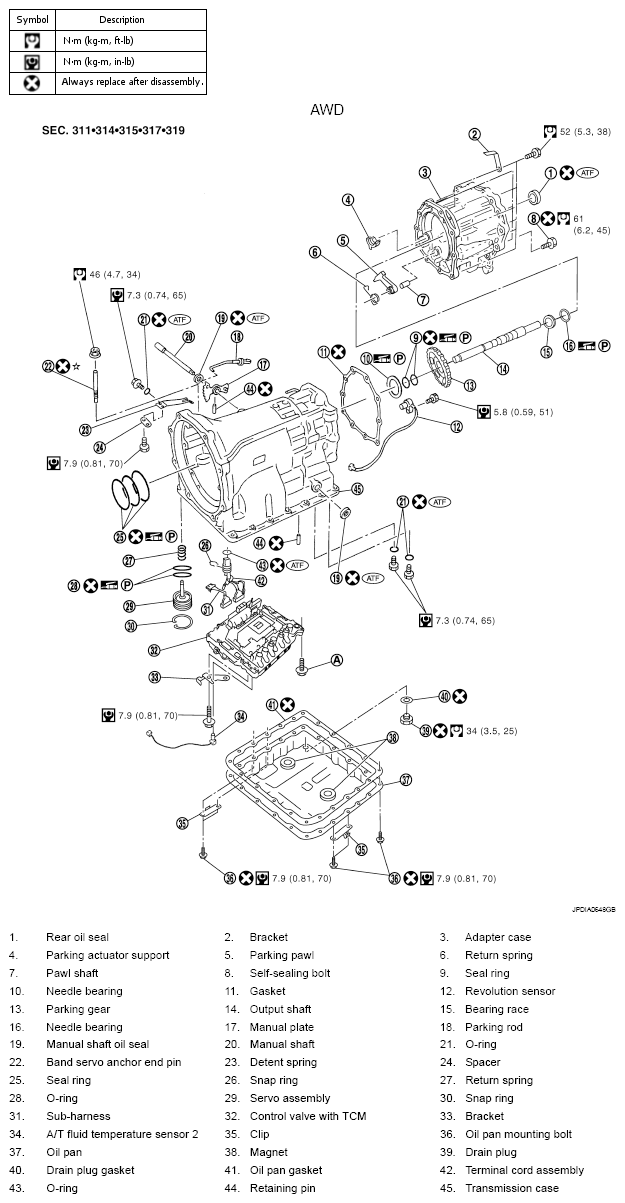

Fig 4: Exploded View Of Transmission Assembly With Torque Specifications - AWD
Courtesy of NISSAN MOTOR CO., U.S.A.
