EX35 Base, RWD
›
Repair and Diagnosis
›
Restraints
›
Restraints Control Systems
›
SRS Airbag Control System
›
Function Diagnosis
›
SRS Airbag System
›
System Diagram
System Diagram

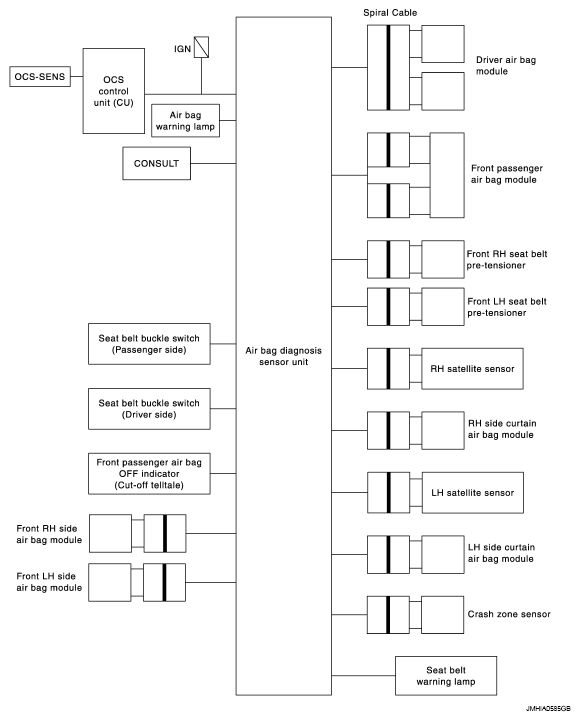

Fig 1: Identifying SRS Airbag System Diagram
