Engine Control System - Introduction (VQ35DE)
›
Trouble Diagnosis
›
Circuit Diagram
Circuit Diagram

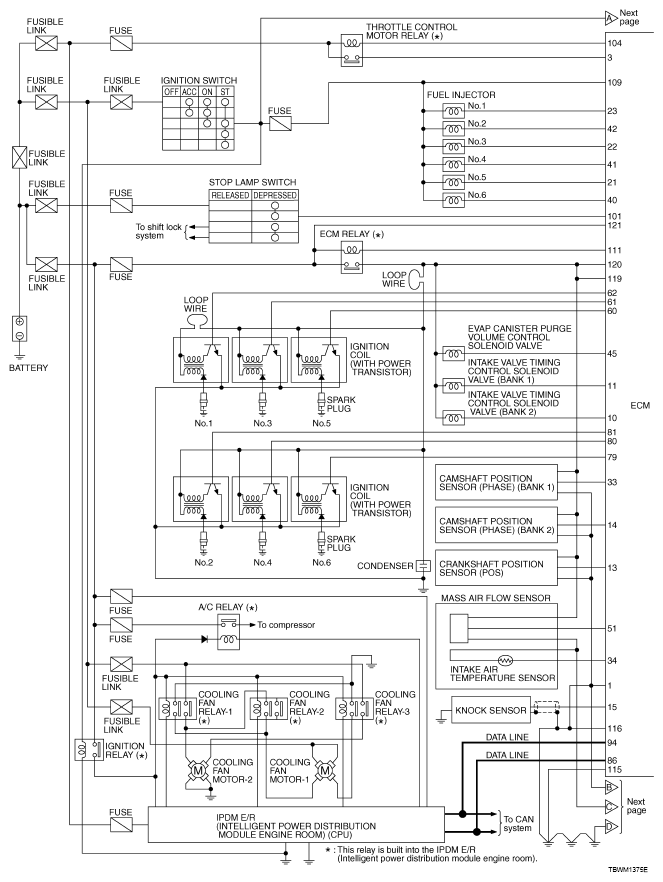

Fig 1: Engine Control System - Circuit Diagram (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

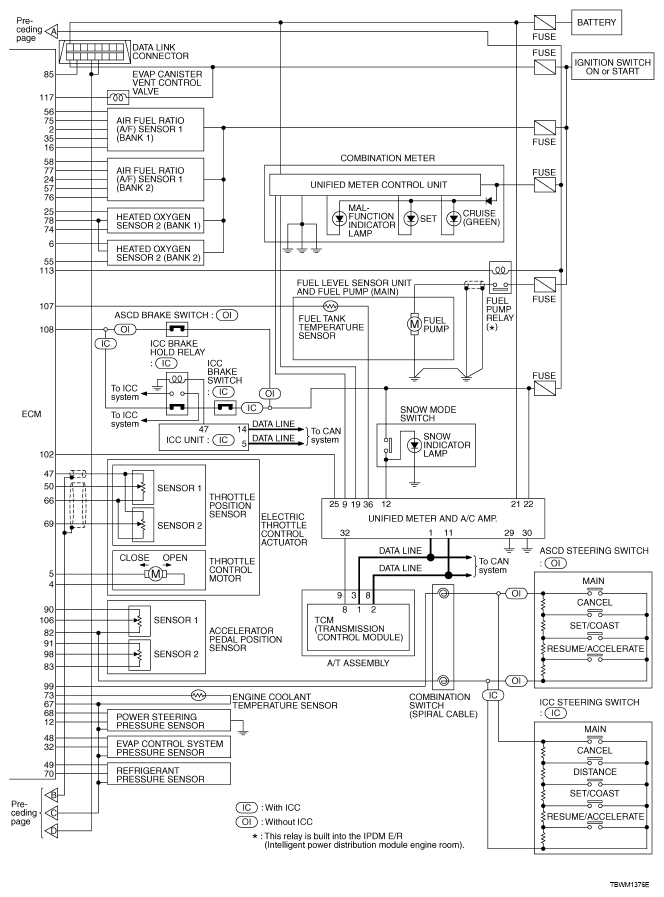

Fig 2: Engine Control System - Circuit Diagram (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
