Vehicle Security System
›
Component Parts Location
Component Parts Location

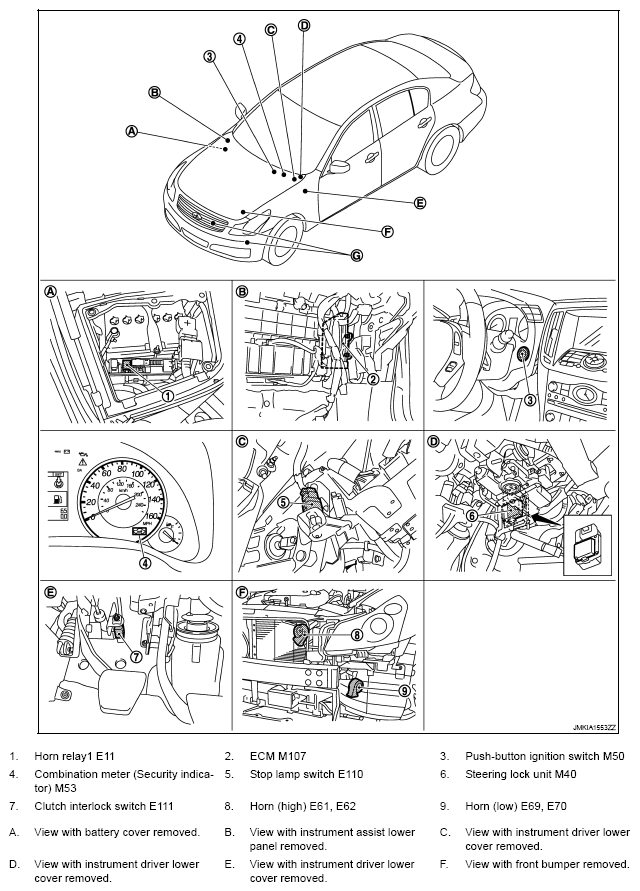

Fig 1: Identifying Vehicle Security System Component Parts Location (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

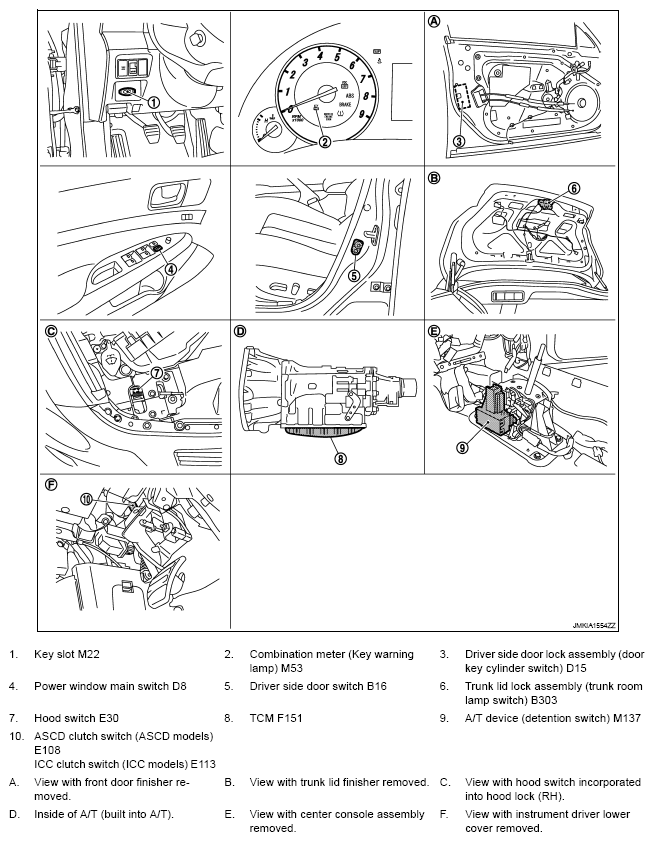

Fig 2: Identifying Vehicle Security System Component Parts Location (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

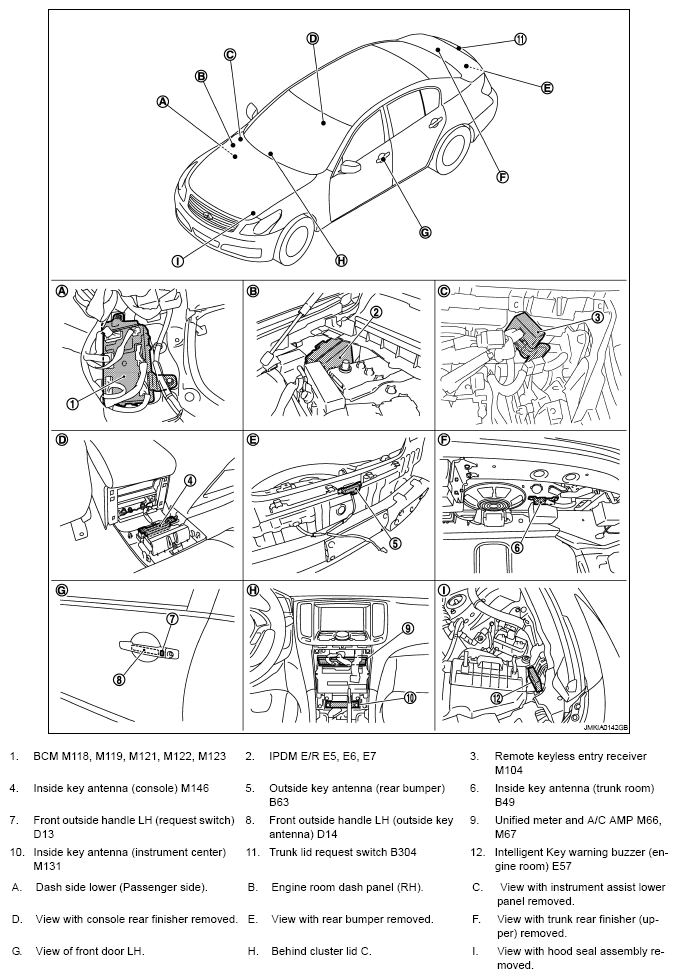

Fig 3: Identifying Vehicle Security System Component Parts Location (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
