Exploded View: Removal

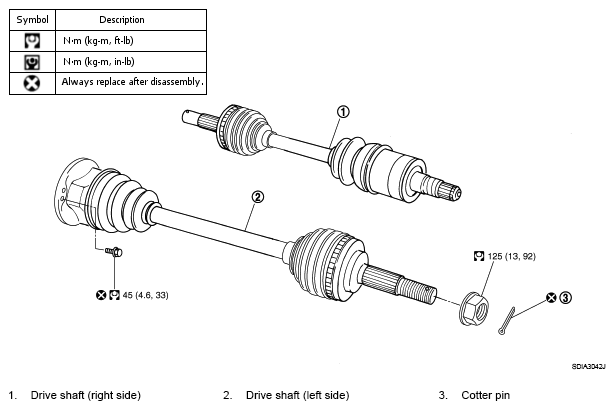

Fig 1: Exploded View Of Front Drive Shaft With Torque Specifications (1 Of 2)
G05224273Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GENERAL INFORMATION for symbols in the figure.
