Power Control System
›
IPDM E/R
›
Function Diagnosis
›
Relay Control System
›
System Diagram
System Diagram

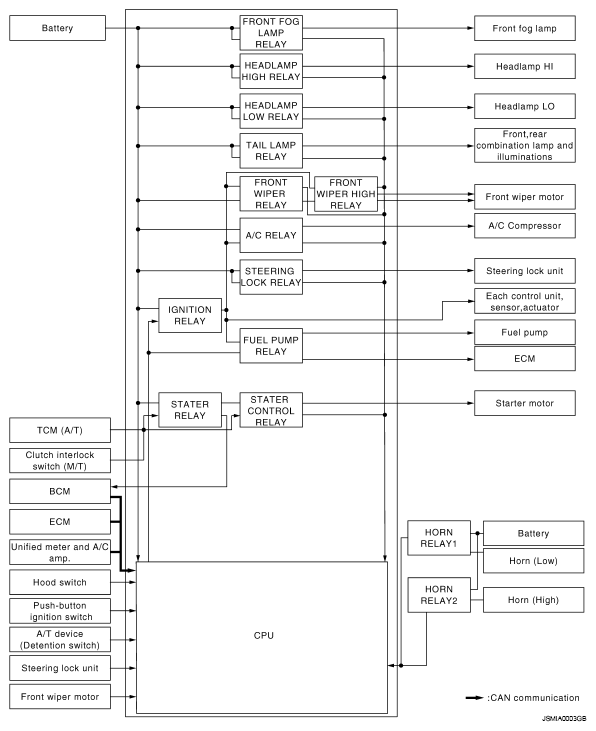

Fig 1: Relay Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
