AWD : Exploded View: Disassembly

Type: A3TJ1991

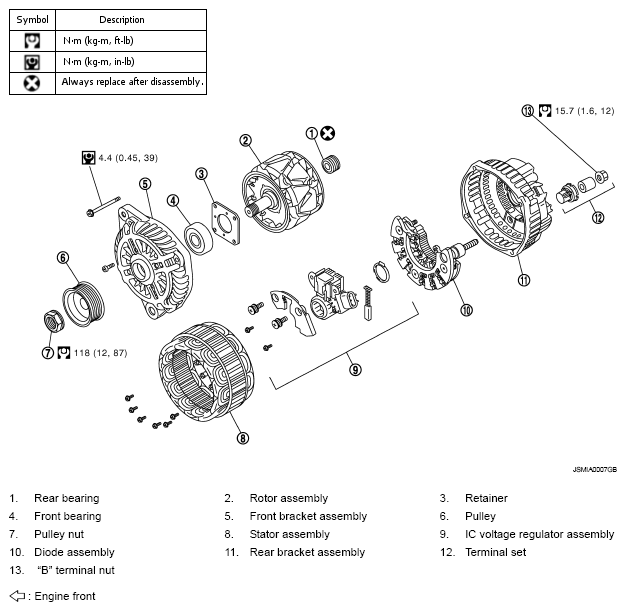

Fig 1: Disassembling View Of Alternator (AWD) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
