Infiniti
›
2008
›
G35 Base
›
Repair and Diagnosis
›
Electrical
›
Gauges
›
Instrument Panel
›
On-Vehicle Repair
›
Instrument Panel Assembly
›
Exploded View
Exploded View

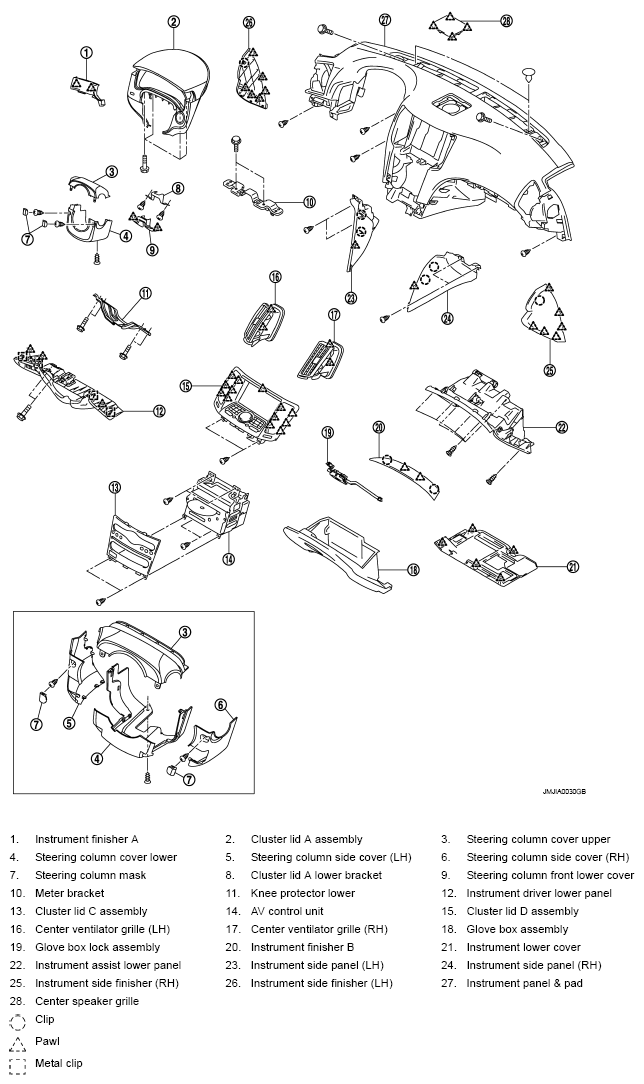

Fig 1: Exploded View Of Instrument Panel Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
