Exploded View

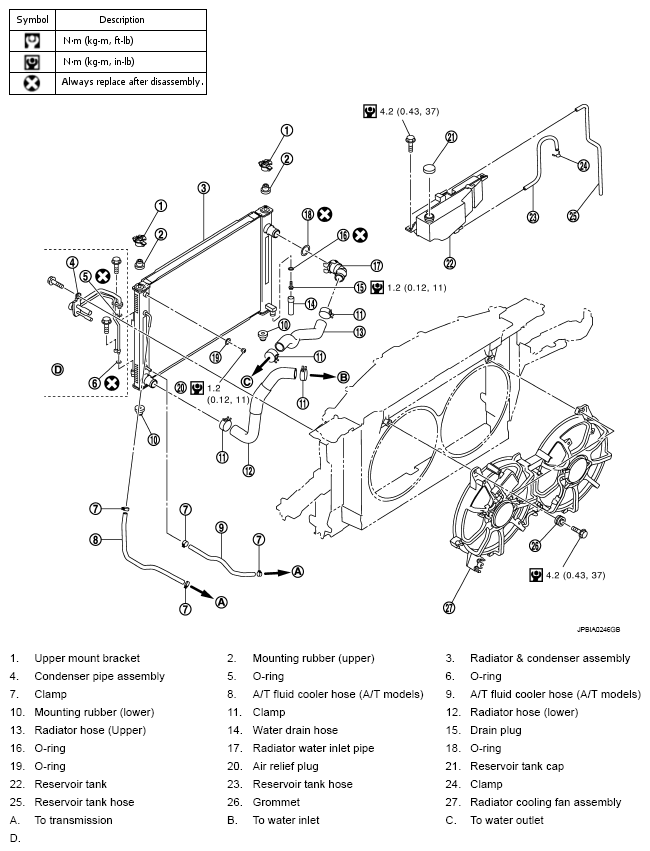

Fig 1: Exploded View Of Radiator With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbol marks in the figure.D. Refer to CONDENSER PIPE ASSEMBLY
