Cross-Sectional View (2WD models)

WARNING: This page is about a different car, the 2008 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

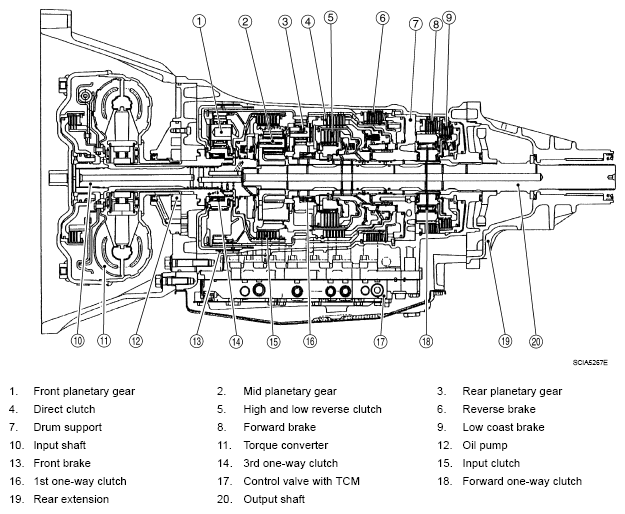

Fig 1: Cross-Sectional View Of A/T Control System (2WD Models)
