Case And Extension

WARNING: This page is about a different variant/trim than selected.

See RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS , Assembly  and COMPONENTS .

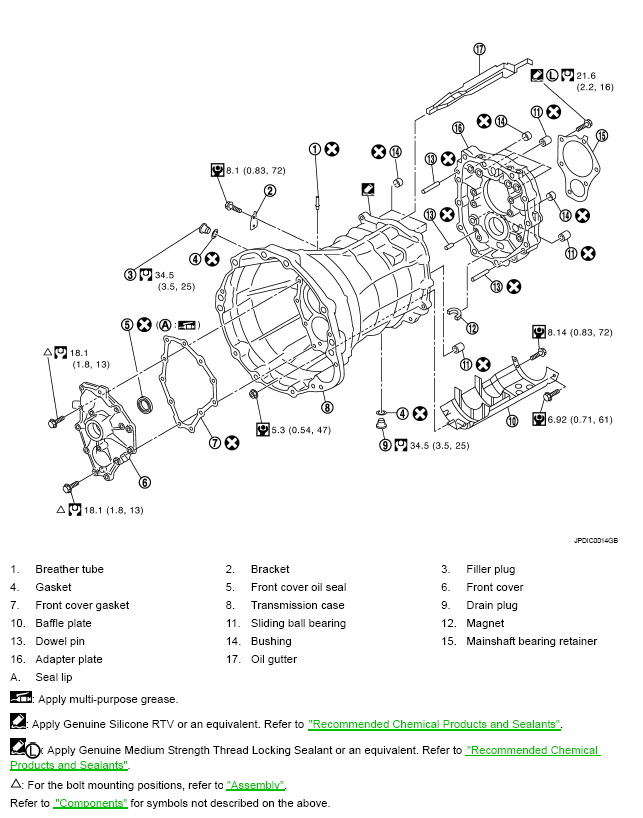

Fig 1: Exploded View Of Case And Extension (1 Of 2) With Torque Specifications
G05225824Courtesy of NISSAN MOTOR CO., U.S.A.

See RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS and COMPONENTS .

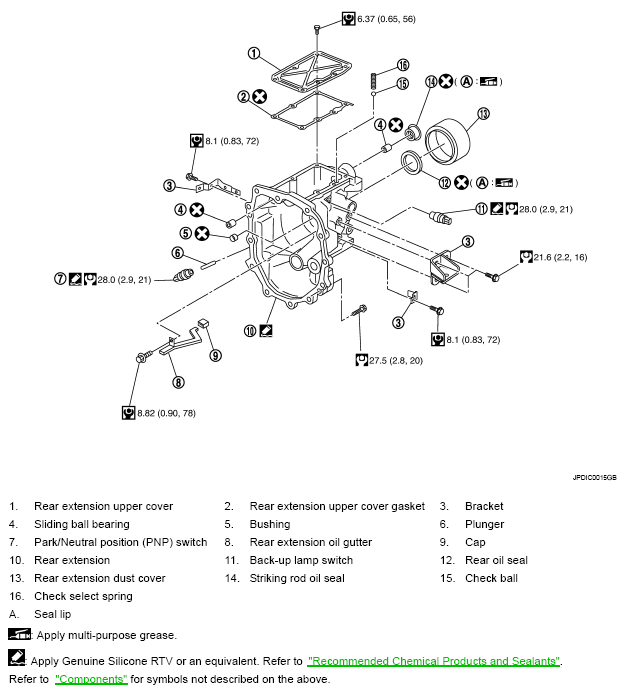

Fig 2: Exploded View Of Case And Extension (2 Of 2) With Torque Specifications
G05225825Courtesy of NISSAN MOTOR CO., U.S.A.
