Component Description

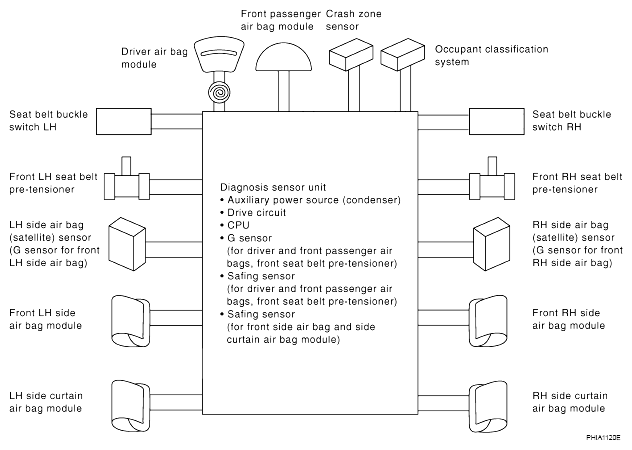

Fig 1: SRS Air Bag System Component Description

G04876963

Courtesy of NISSAN MOTOR CO., U.S.A.

Air bag sensor are prepared for operation while the ignition switch is in the ON or START position.
The operation of supplemental restraint system is different from collision modes application. For example the driver air bag module and front passenger air bag module are activated in a frontal collision but not in a side collision.

SRS configurations which are activated for some collision modes are as follows;

SRS CONFIGURATION CHART

SRS configuration	Frontal collision	Left side collision	Right side collision
Driver air bag module. Refer to B1054 DRIVER AIRBAG MODULE	x	-	-
Front passenger air bag module. Refer to B1070 ASSIST A/B MODULE	x	-	-
Front LH seat belt pre-tensioner. Refer to B1086 PRE-TEN FRONT LH	x	-	-
Front RH seat belt pre-tensioner. Refer to DTC CONFIRMATION PROCEDURE (Without CONSULT-III)	x	-	-
Front LH side air bag module. Refer to B1134 SIDE MODULE LH	-	x	-
Front RH side air bag module. Refer to B1129 SIDE MODULE RH	-	-	x
LH side curtain air bag module. Refer to B1150 CURTAIN MODULE LH	-	x	-
RH side curtain air bag module. Refer to B1145 CURTAIN MODULE RH	-	-	x
x: Application, -: Not application
