Steering
›
Power Steering
›
Steering Control System
›
With 4WAS
›
Function Diagnosis
›
4WAS System
›
System Diagram
›
Cross-Sectional View
Cross-Sectional View

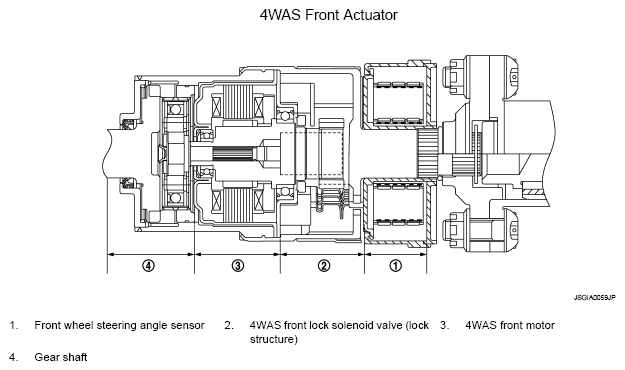

Fig 1: Cross-Sectional View Of 4WAS Front Actuator
Courtesy of NISSAN MOTOR CO., U.S.A.

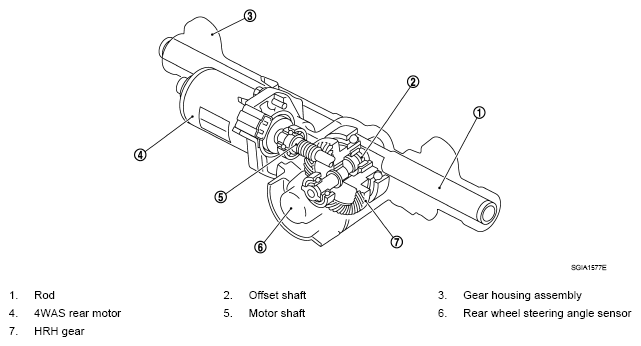

Fig 2: Identifying 4WAS Rear Actuator Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
