Home
›
Infiniti
›
2008
›
G35 Base
›
Repair and Diagnosis
›
Suspension
›
Front Suspension
›
AWD
›
Removal And Installation
›
Front Suspension Assembly
›
Exploded View
Exploded View

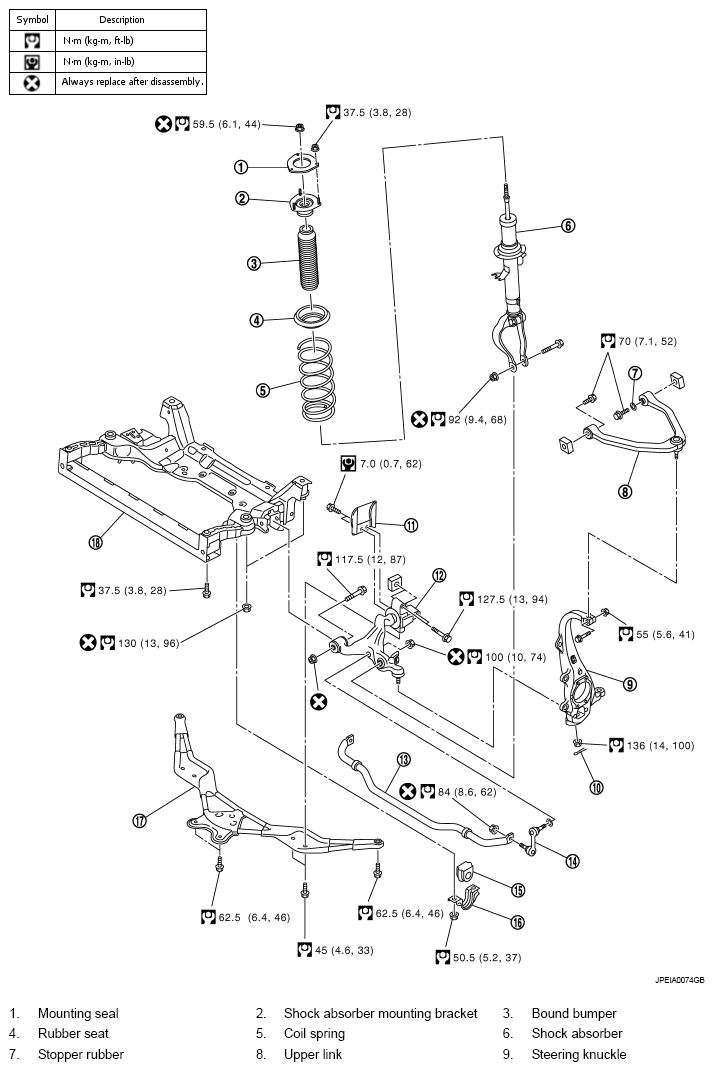

Fig 1: Exploded View Of Front Suspension Assembly With Torque Specifications
Refer to "
COMPONENTS
" for symbols in the figure.
