Oil Channel

2WD

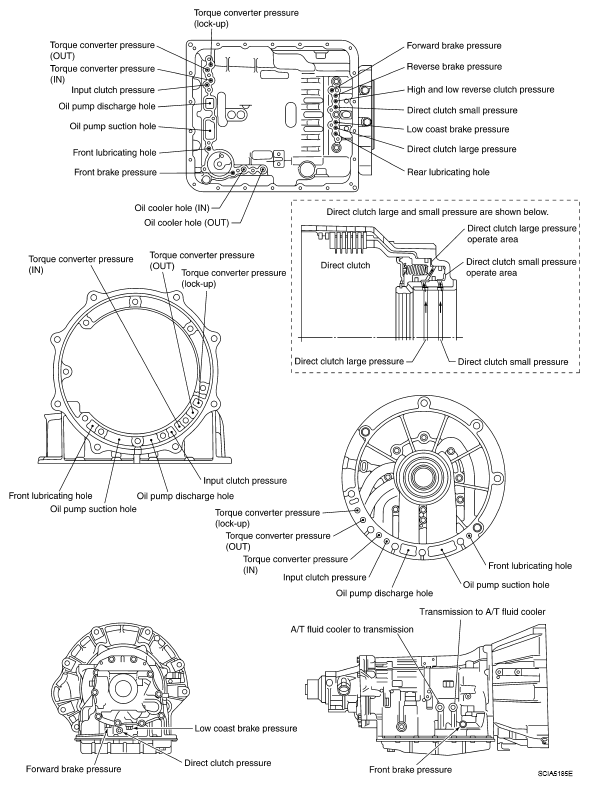

Fig 1: Identifying Oil Channel (2WD)
G05218722Courtesy of NISSAN MOTOR CO., U.S.A.

AWD

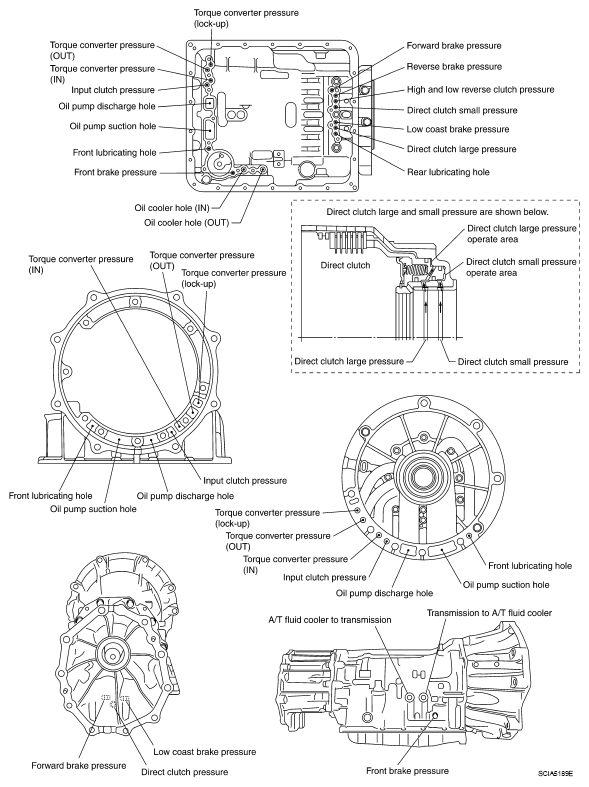

Fig 2: Identifying Oil Channel (AWD)
G05218723Courtesy of NISSAN MOTOR CO., U.S.A.
