Inspection and Installation: Notes

Inspection after Removal

Check the regulator assembly for the following items. If a malfunction is detected, replace or grease it.

• Wire wear
• Regulator deformation
• Grease condition for each sliding part

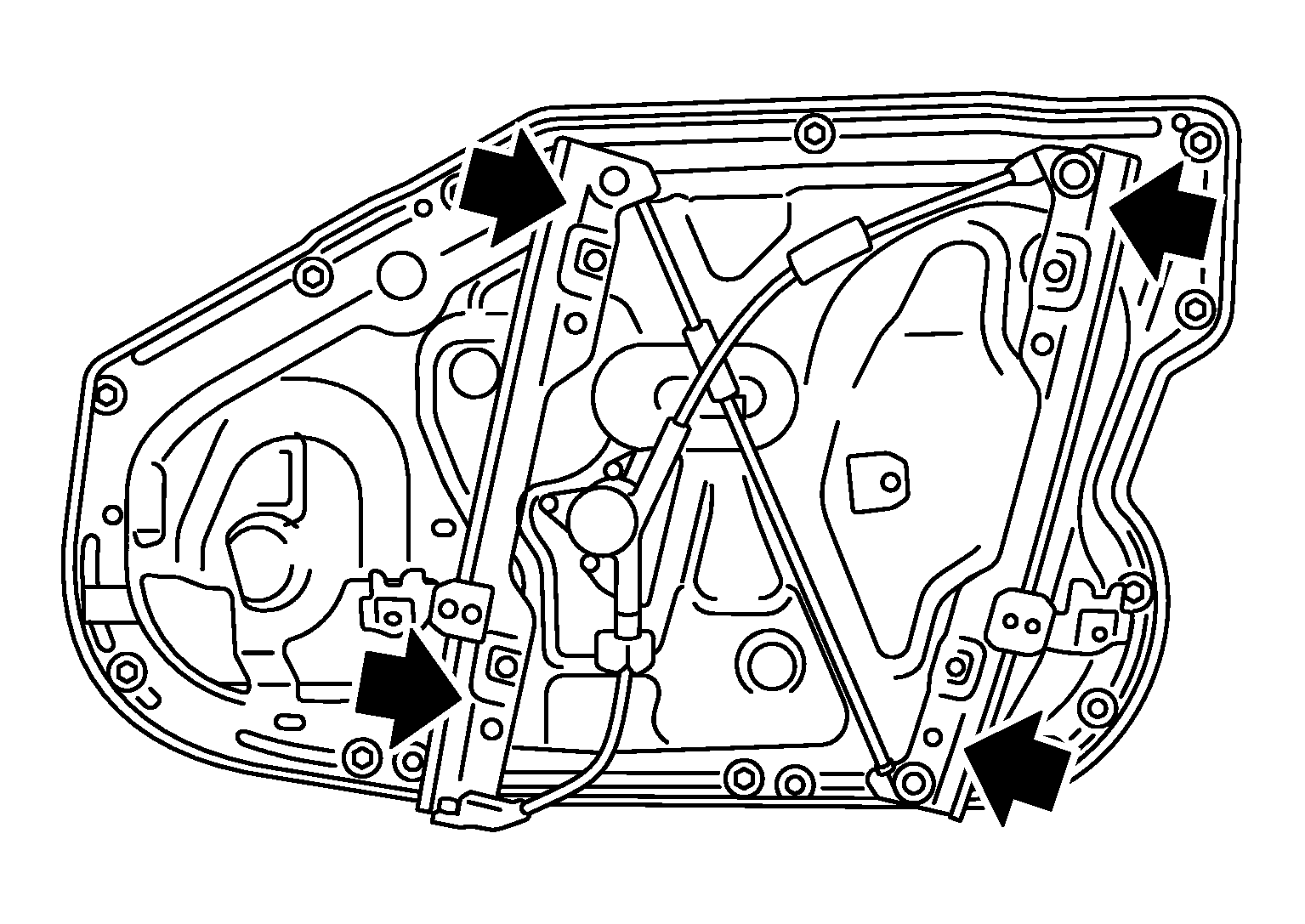

  The arrows in the figure show the application points of the multi-purpose grease.

  Fig 1: Locating Multi-Purpose Grease Application Points On Regulator Assembly

  Courtesy of NISSAN MOTOR CO., U.S.A.
