6MT: FS6R31A
›
On-Vehicle Repair
›
Shift Control
›
Exploded View
Exploded View
See
RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS
and
COMPONENTS

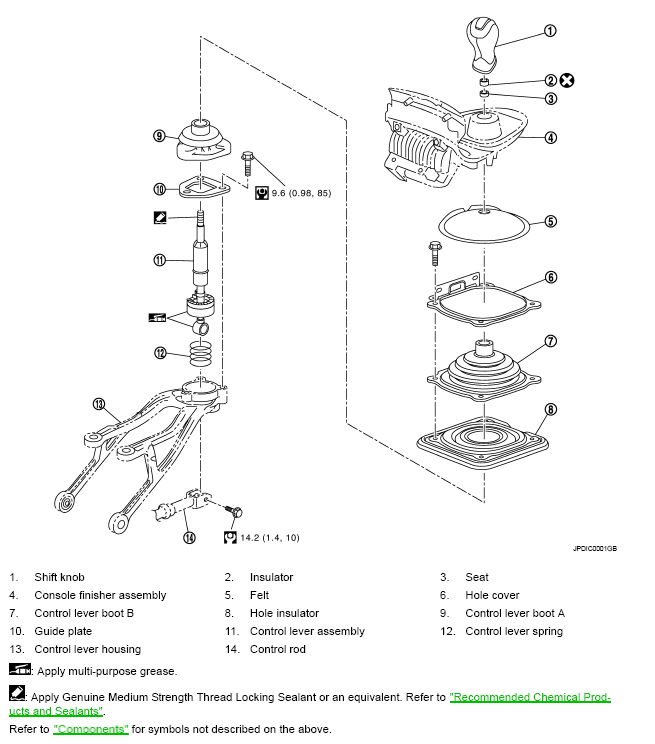

Fig 1: Exploded View Of Shift Control With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
