Center Console Assembly
›
Exploded View
›
Center Console (At Models)
Center Console (At Models)

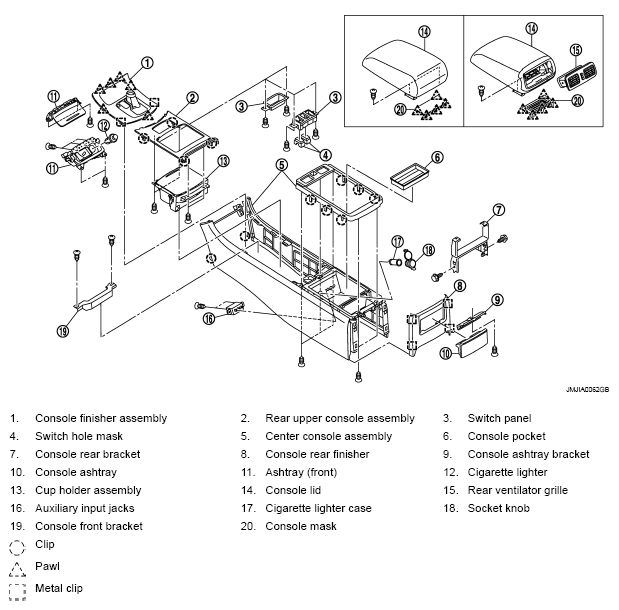

Fig 1: Exploded View Center Console (AT Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
