Exploded View

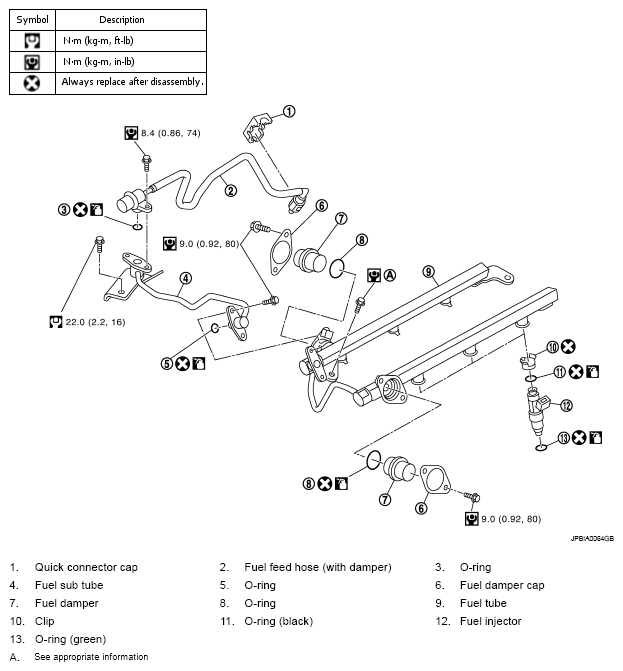

Fig 1: Exploded View Of Fuel Injector And Fuel Tube With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

71 Refer to "COMPONENTS " for symbol marks in the figure.

CAUTION: Do not remove or disassemble parts unless instructed as shown in the figure.
