Overall Sequence

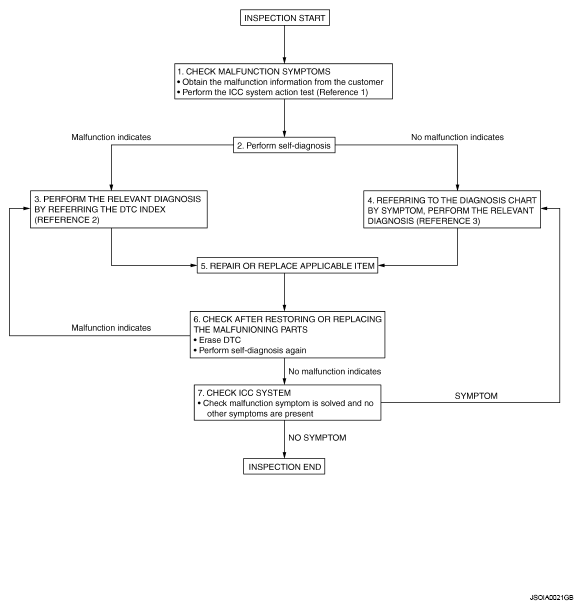

Fig 1: Work Flow Chart

G05223955

Courtesy of NISSAN MOTOR CO., U.S.A.

Reference 1... Refer to "ACTION TEST : SPECIAL REPAIR REQUIREMENT (VEHICLE-TO-VEHICLE DISTANCE CONTROL MODE) ".
Reference 2... Refer to "DTC INDEX ".
Reference 3... Refer to "SYMPTOM TABLE ".
