ICC Steering Switch

ICC system is operated by MAIN switch and four control switches, all mounted on the steering wheel.

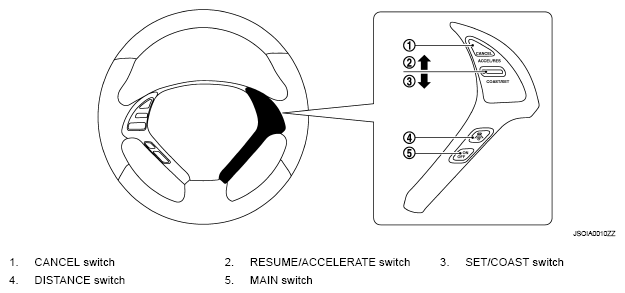

Fig 1: Identifying MAIN Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: The on board self-diagnosis function of the ICC system can be started with the RESUME/ACCELERATE switch and SET/COAST switch. Refer to "DIAGNOSIS DESCRIPTION ".

VEHICLE-TO-VEHICLE DISTANCE CONTROL MODE

No.	Switch name	Description
1	CANCEL switch	Deactivates system without erasing set speed.
2	RESUME/ACCELERATE switch	Resumes set speed or increases speed incrementally.
3	SET/COAST switch	Sets desired cruise speed or reduces speed incrementally.
4	DISTANCE switch	Ineffective in this mode.
5	MAIN switch	Master switch to activate the system (Press for more than 1.5 seconds).

CONVENTIONAL (FIXED SPEED) CRUISE CONTROL MODE

No.	Switch name	Description
1	CANCEL switch	Deactivates system without erasing set speed.
2	RESUME/ACCELERATE switch	Resumes set speed or increases speed incrementally.
3	SET/COAST switch	Sets desired cruise speed or reduces speed incrementally.
4	DISTANCE switch	Changes the following distance from: Long, Middle, Short.
5	MAIN switch	Master switch to activate the system (Press for less than 1.5 seconds).
