Multi Av System
›
System Diagram
System Diagram

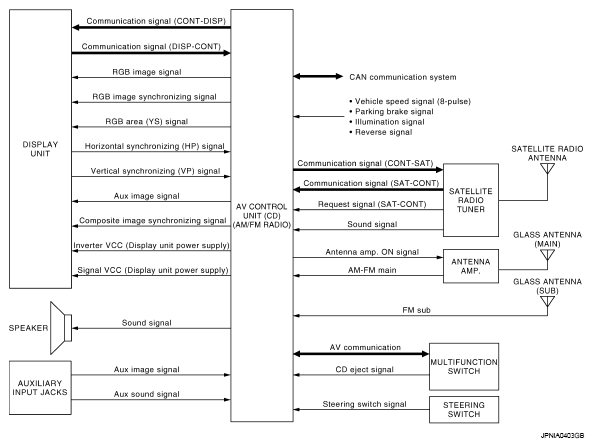

Fig 1: Multi AV System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.
Courtesy of NISSAN MOTOR CO., U.S.A.
