Removal and Installation: Removal

Remove front door finisher. Refer to "REMOVAL AND INSTALLATION ".
Disconnect front door speaker harness connector.
Operate the power window main switch to raise or lower the door window until the glass mounting bolts can be seen.
Remove the glass mounting bolts.

Fig 1: Locating Glass Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Hold securely the door glass and pull it out of the sash to remove the door glass.
NOTE: Do not raise the glass at the top upper of the door after the door glass has been removed.

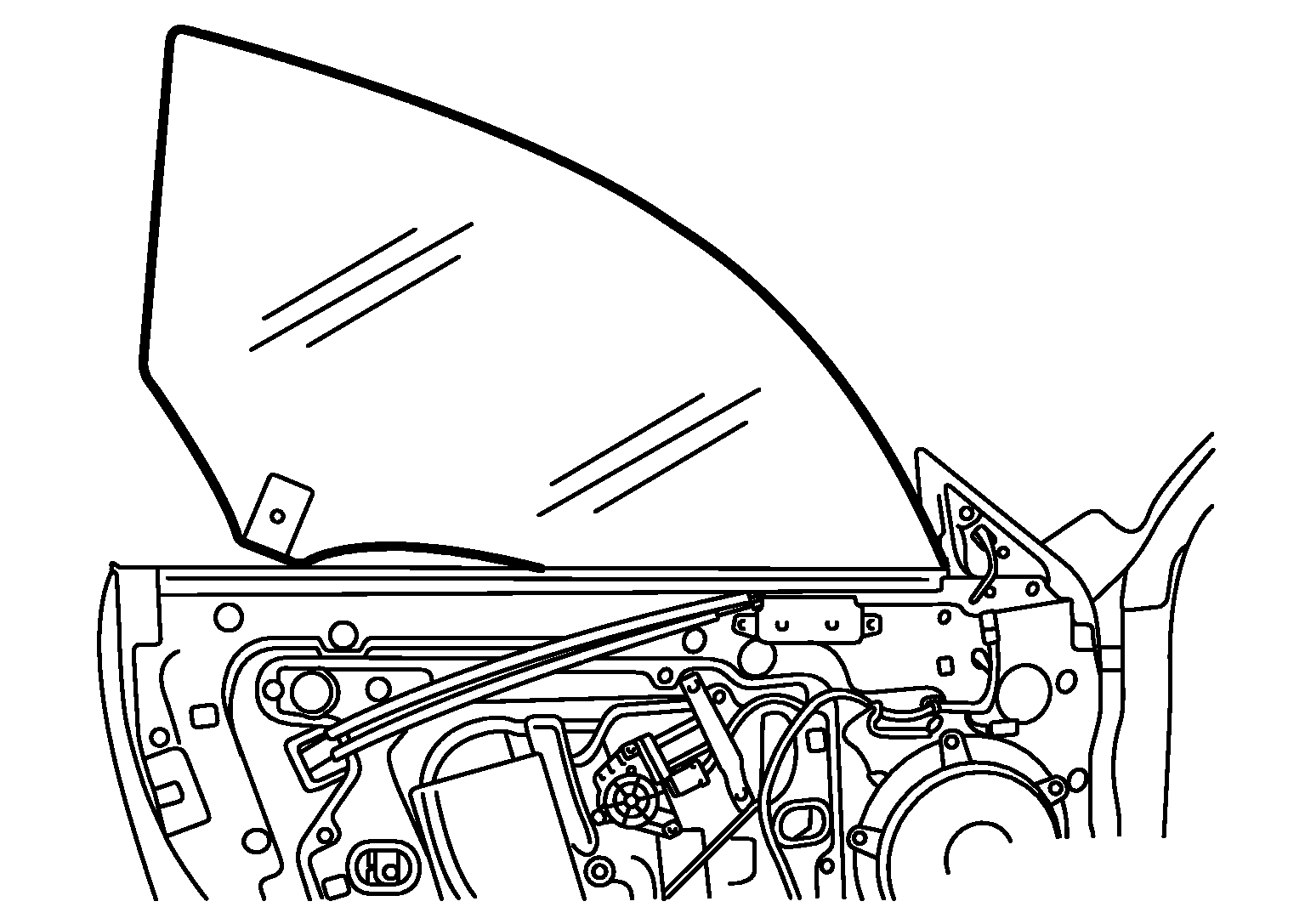

Fig 2: Removing Door Glass
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect power window motor harness connector (A).

Fig 3: Identifying Power Window Motor Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the module assembly bolts, both seal (B) and then remove the bolts under the seal.

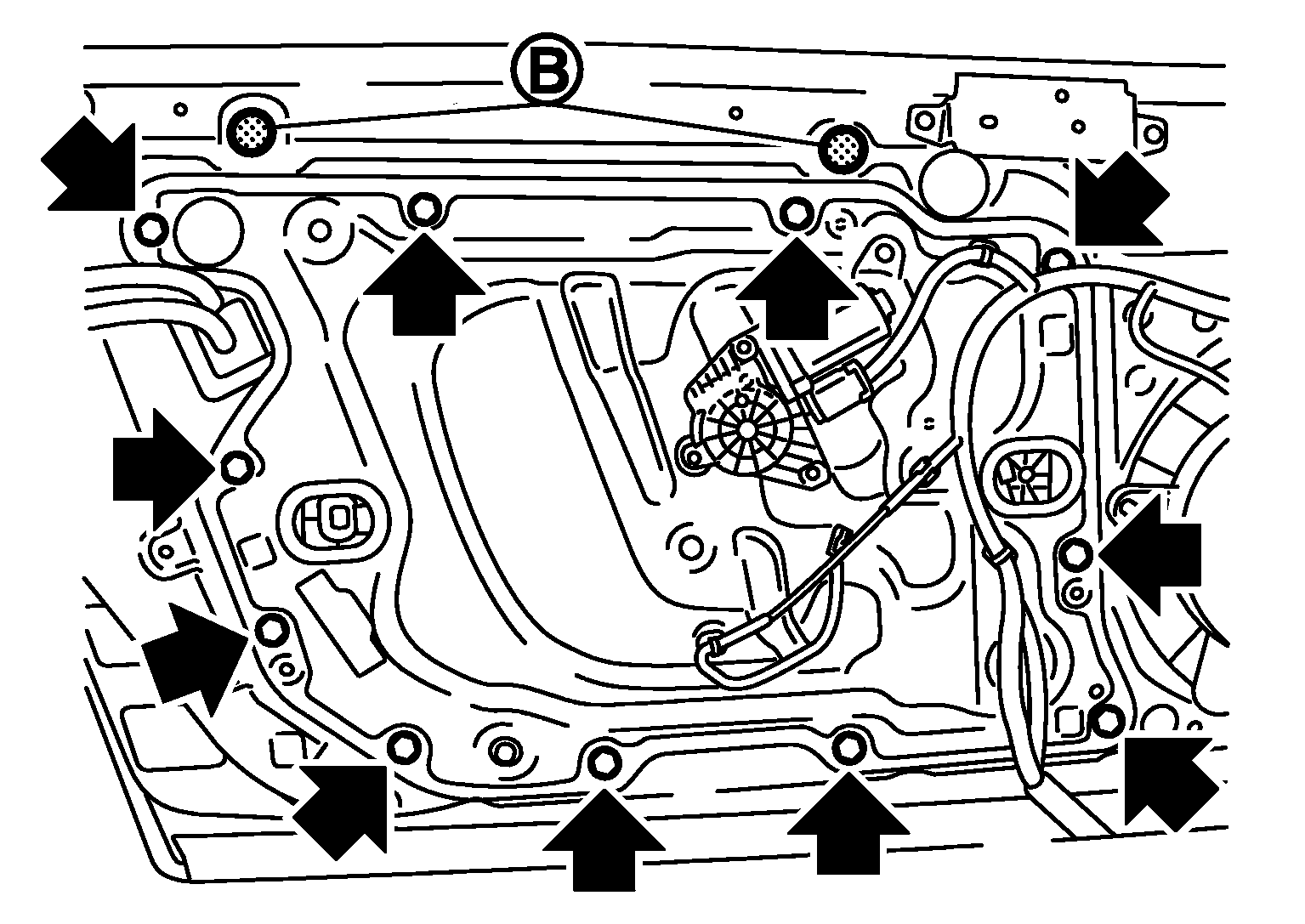

Fig 4: Locating Module Assembly Bolts With Seal
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the module assembly from the door panel.
