Component Parts Location

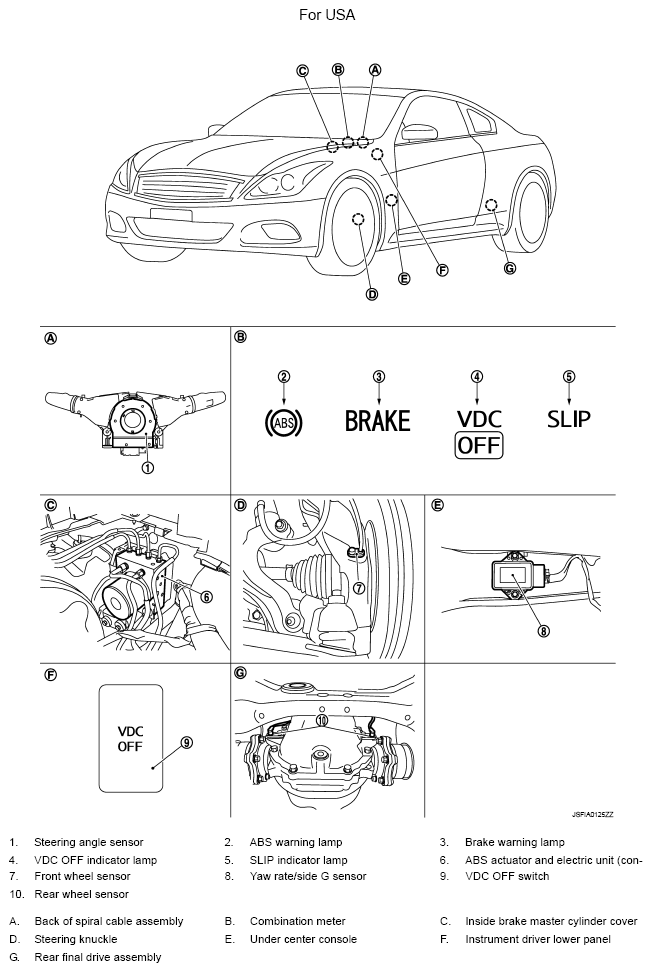

Fig 1: Identifying Vehicle Dynamics Control System Parts Location (For USA)
Courtesy of NISSAN MOTOR CO., U.S.A.

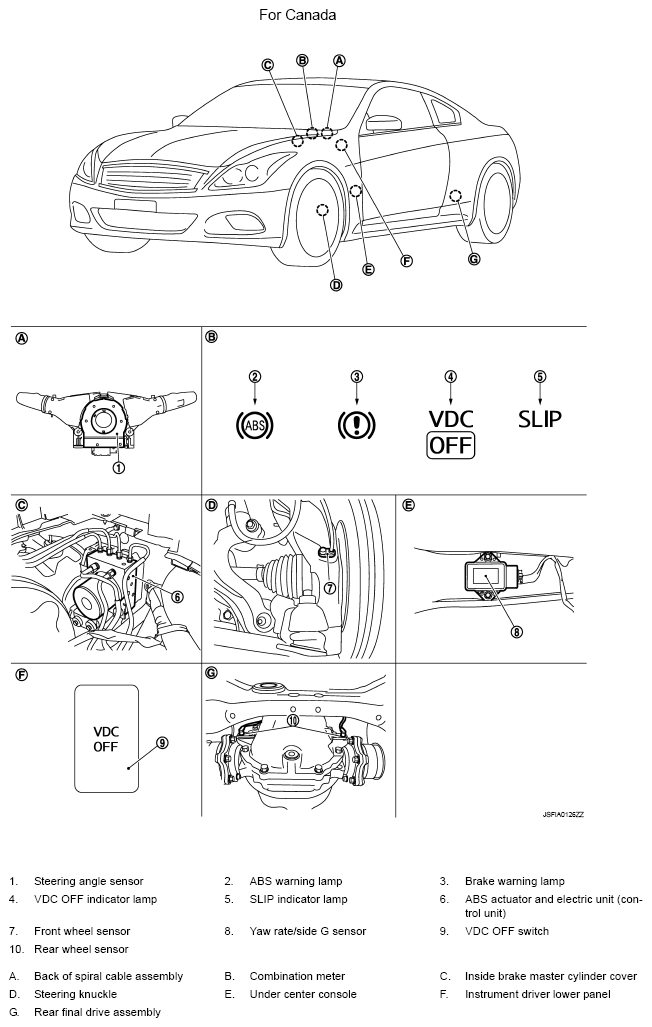

Fig 2: Identifying Vehicle Dynamics Control System Parts Location (For CANADA)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
