Exploded View
Exploded View

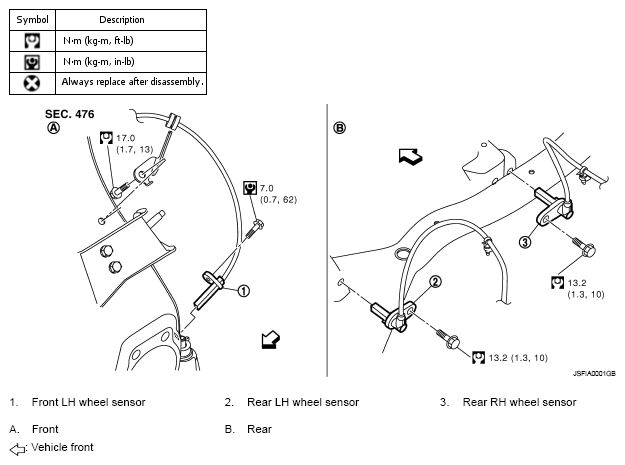

Fig 1: Exploded View Of Wheel Sensor With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbol marks in the figure.
NOTE:
The above figure (front side) shows left side. Right side is the mirror image.
