Exploded View: Removal

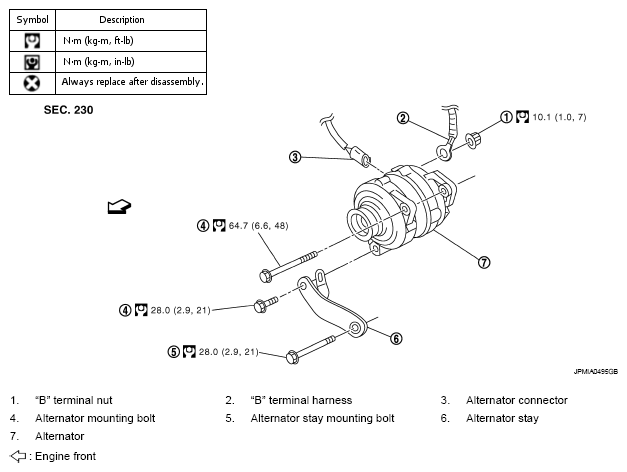

Fig 1: Exploded View Of Alternator With Torque Specifications
G05737641Courtesy of NISSAN MOTOR CO., U.S.A.
