Center Console Assembly
›
Exploded View
›
Center Console (M/T Models)
Center Console (M/T Models)

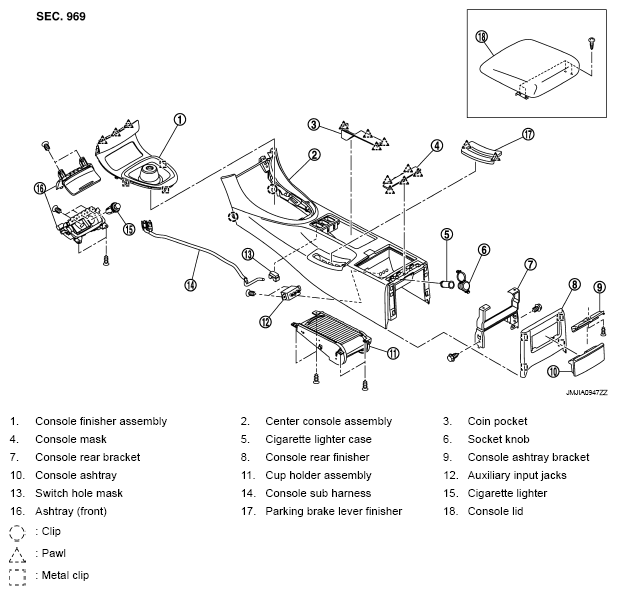

Fig 1: Exploded View Of Center Console (M/T Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
