Infiniti
›
2008
›
G37 Base
›
Repair and Diagnosis
›
Engine Mechanical
›
Cooling System (Mechanical)
›
Engine Cooling System
›
On-Vehicle Repair
›
Cooling Fan
›
Exploded View
Exploded View

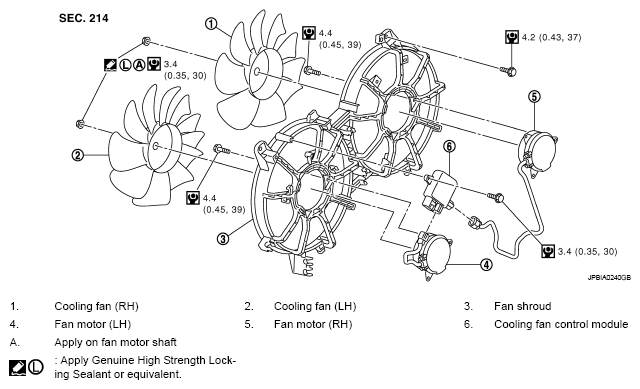

Fig 1: Exploded View Of Cooling Fan With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
