FixVault
Home
›
Infiniti
›
2008
›
G37 Base
›
Repair and Diagnosis
›
Engine Mechanical
›
Engine Lubrication System
›
On-Vehicle Repair
›
Oil Cooler
›
Exploded View
Exploded View

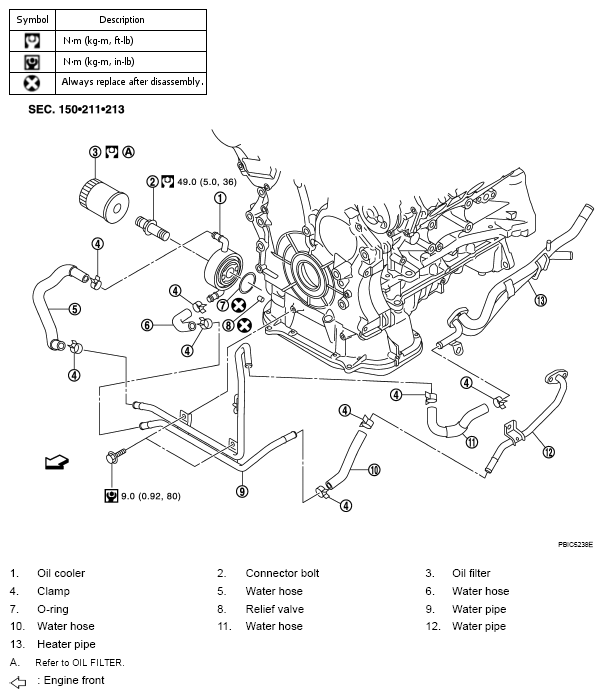

Fig 1: Exploded View Of Oil Cooler With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
